LP150

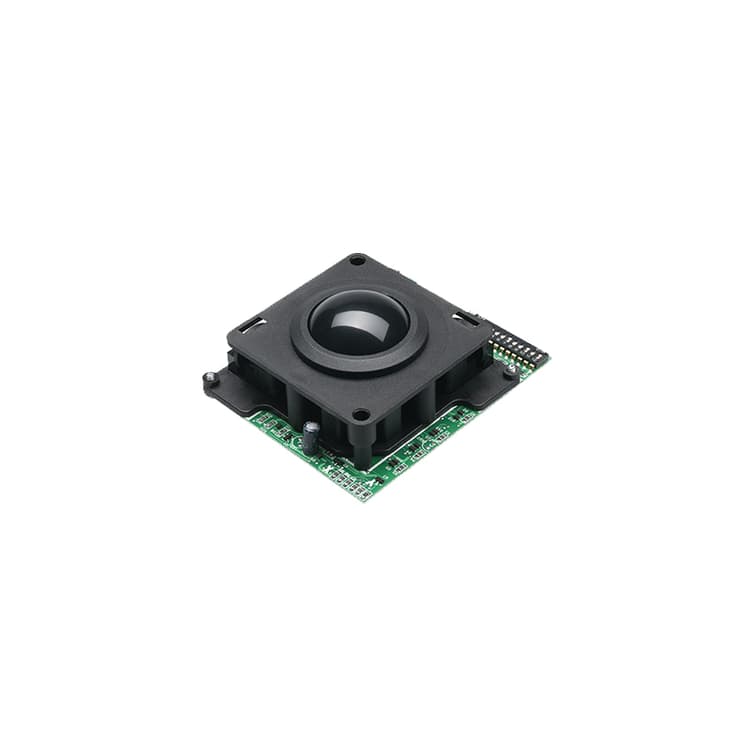

The LP150 Series is a low-profile miniature trackball with a panel mount design and USB 2.0 protocol option. The 1.50 diameter ball is available in black or backlit illumination.
Caractéristiques principales
Fiche techniqueSpécifications
Specifications generales:
- LED backlighting: Red, Blue, Green orClear through a translucent Thermostatresin ball
- Additional pushbutton switch: Two, three orfour* buttons (* USB only) – see Button Strips
- Connector cables
- Conformally coated PCB
Specifications environnementales:
- Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
Specifications electriques:
- USB: Input: 4.00V – 5.25V @ 25mA max(+30mA for backlit illumination option)Output: USB 1.1
- PS/2 (2/3BTN PS/2): Input: 5.00V @ 25mA max(+30mA for backlit illumination option)Output: CMOS/TTL
- Microsoft Serial*:Input:DTR/RTS @ 14 mA max(+30mA for backlit illumination option)Output: RS-232, Serial
- Quadrature: Input: 5.00V @ 30mA max(+30mA for backlit illumination option)Output: Quadrature Waveforms
- Sun Workstation: Input: 5.00V @ 30mA max(Mouse Systems Serial) (+30mA for backlit illumination option)Output: CMOS/TTL
Materiaux:
- Thermostat resin ball
Specifications mecaniques:
- Ball Diameter: 1.50 (38.10mm)
- Ball Rotation: Continuous in all directions
- Tracking Force: 10g (0.35oz)
- Weight: 118.5.5g (4.18oz)
- Life Cycle (ball rotations): 5 million
