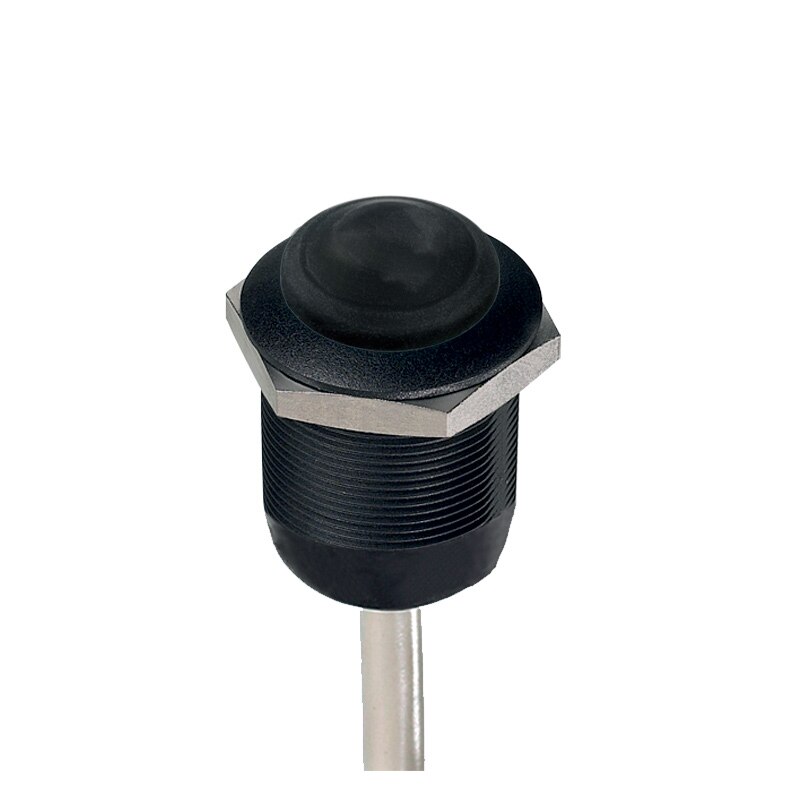

FPAR3A2222X0X
Introducing the FPAR3A2222X0X Panel Switch! Designed for a variety of electrical functions, this pushbutton switch is perfect for any application requiring precise control. With its normally open NO configuration, it ensures reliable performance every time. The FPAR3A2222X0X features straight cable terminals, making installation a breeze. Upgrade your electrical system with this high-quality panel switch today!
Key Features
- LED Color: Non-Illuminated
- Actuator Colors: Black
- Actuators: Round, Curved
- Electrical Functions: Normally Open (NO)
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Non-Illuminated 1-Pole
- Led Resistors: No Resistor Supplied
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Straight Cable
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
