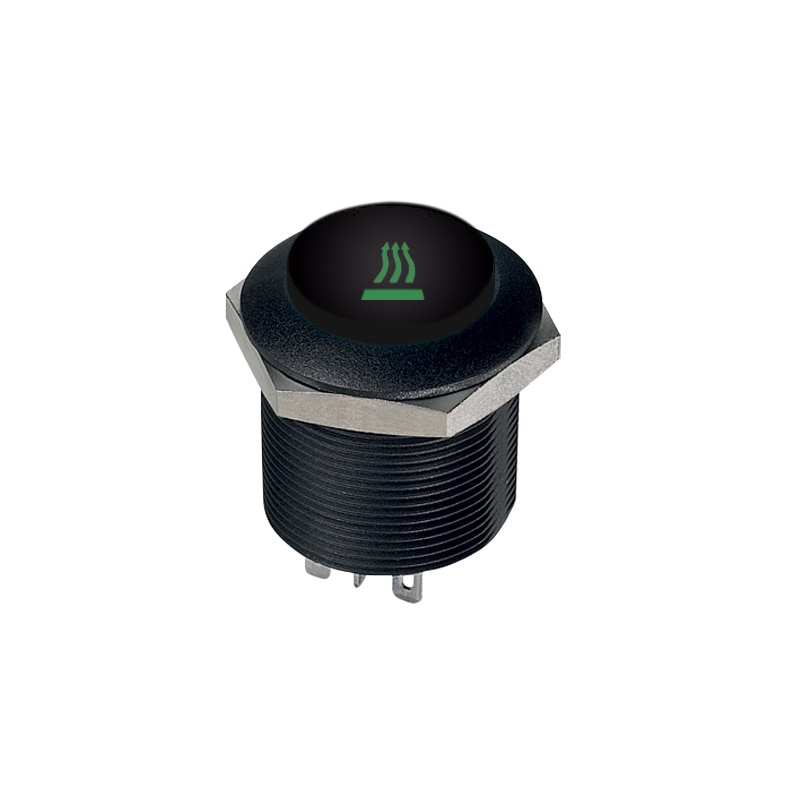

FPAR1D1222B1218
The FPAR1D1222B1218 Panel Switch is designed to provide reliable electrical functions for various applications. With its sleek and compact design, it seamlessly integrates into any electrical system. The switch features a simple yet efficient off-on functionality, allowing users to easily toggle between states. Additionally, it is equipped with solder lugs terminals, ensuring secure connections for long-lasting performance.
Key Features
- LED Color: Green
- Actuator Colors: Black
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 2 Poles
- Led Resistors: 12VDC Resistor
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
- Symbols: Heating
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
