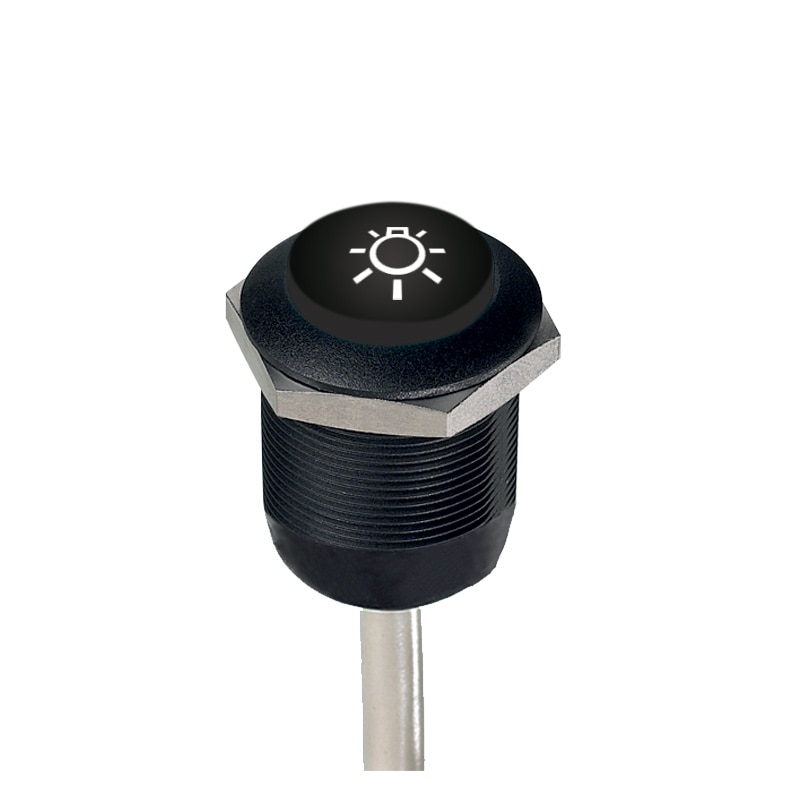

FPAR1C2422E2295
Introducing the FPAR1C2422E2295 Panel Switch, a versatile solution for all your electrical needs. With its sleek design and reliable performance, this switch is perfect for a variety of applications. Whether you're controlling lights, appliances, or other electrical functions, the FPAR1C2422E2295 has got you covered. Its terminals are designed for easy installation, ensuring a hassle-free experience. So go ahead, switch it on and enjoy the convenience and efficiency of the FPAR1C2422E2295 Panel Switch.
Key Features
- LED Color: White
- Actuator Colors: Black
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver Gold-Plated
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 24VDC Resistor
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Straight Cable
- Symbols: Lighting Main Switch
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
