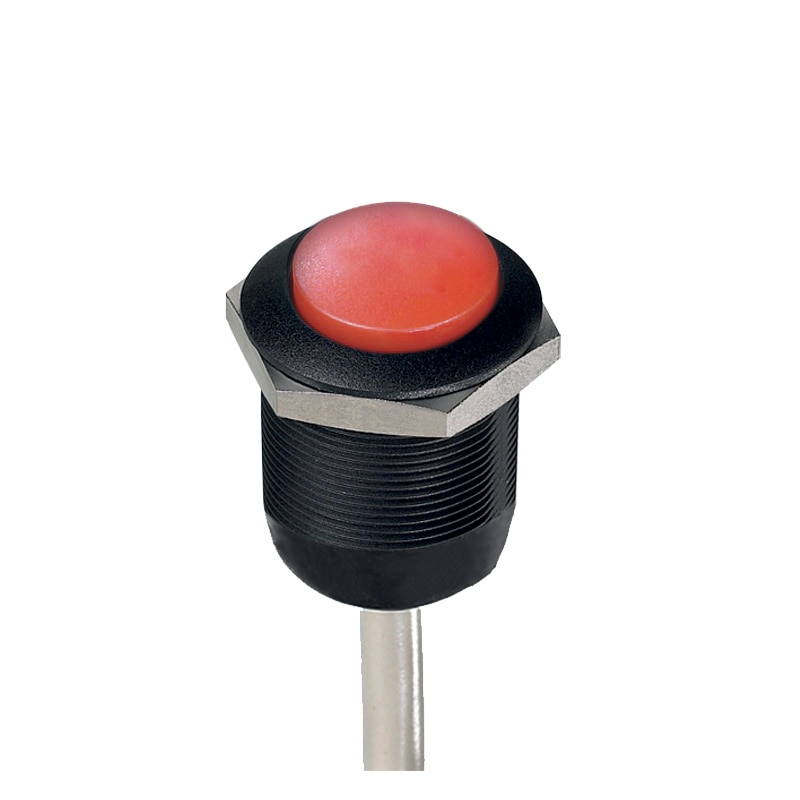

FPAR1C2262C1X
Introducing the FPAR1C2262C1X Panel Switch! This sleek and reliable switch is perfect for all your electrical needs. With its advanced electrical functions, you can effortlessly toggle between OFF and ON modes. The FPAR1C2262C1X features convenient terminals for easy installation. Simply connect it to a straight cable and you're ready to go. Upgrade your electrical system with the FPAR1C2262C1X Panel Switch today!
Key Features
- LED Color: Red
- Actuator Colors: Red
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 12VDC Resistor
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Straight Cable
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
