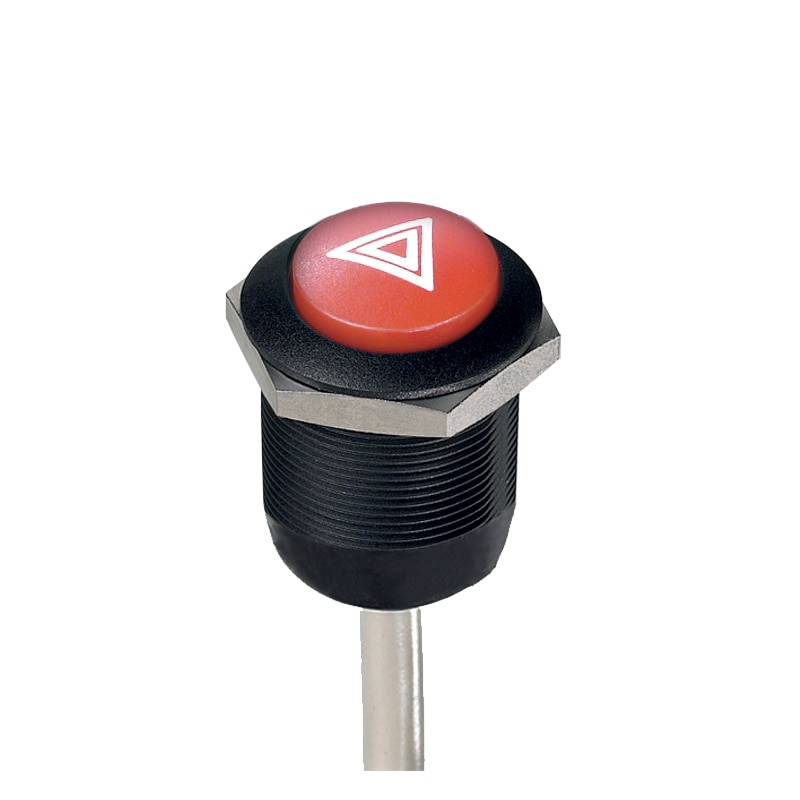

FPAR1C2262C1113
The FPAR1C2262C1113 Panel Switch is designed to provide reliable and efficient electrical functions for a wide range of applications. With its sleek and compact design, this pushbutton switch offers ease of use and seamless integration into any electrical system. Its terminals are designed for easy installation and connection, ensuring a hassle-free experience. Whether you need to turn an electrical function on or off, the FPAR1C2262C1113 Panel Switch is your go-to solution.
Key Features
- LED Color: Red
- Actuator Colors: Red
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 12VDC Resistor
- Markings: White Pad Printing
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Straight Cable
- Symbols: Hazard Warning
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
