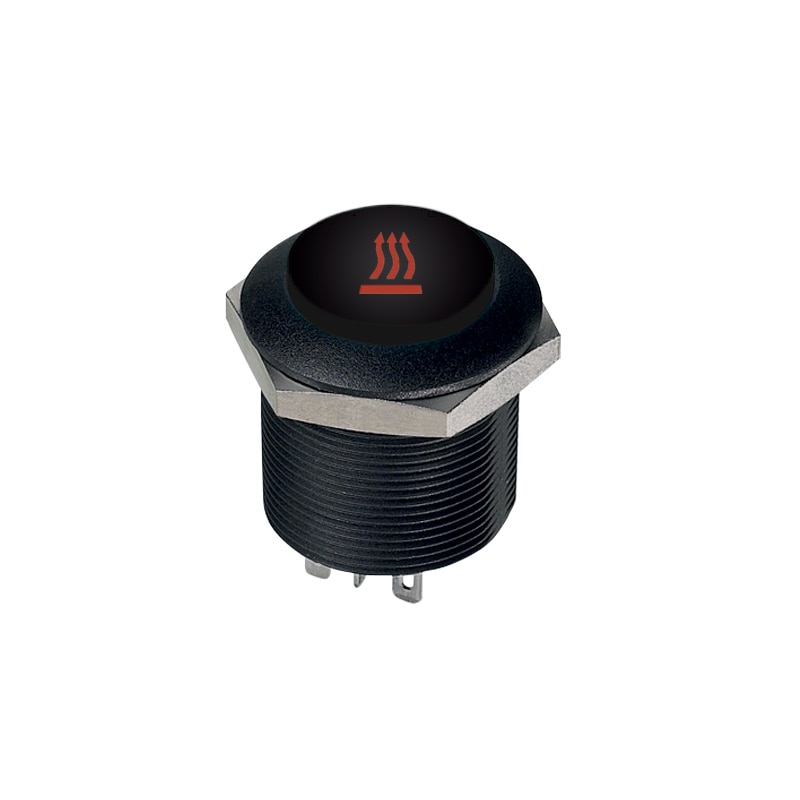

FPAR1C2222C2218
The FPAR1C2222C2218 Panel Switch is the perfect solution for all your electrical needs. With its wide range of electrical functions, you can easily control various devices and systems. Whether it's turning lights on and off or operating machinery, this switch has got you covered. The straight cable terminals ensure a secure and reliable connection, allowing for seamless integration into your setup. Experience the convenience and versatility of the FPAR1C2222C2218 Panel Switch today.
Key Features
- LED Color: Red
- Actuator Colors: Black
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 24VDC Resistor
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Straight Cable
- Symbols: Heating
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
