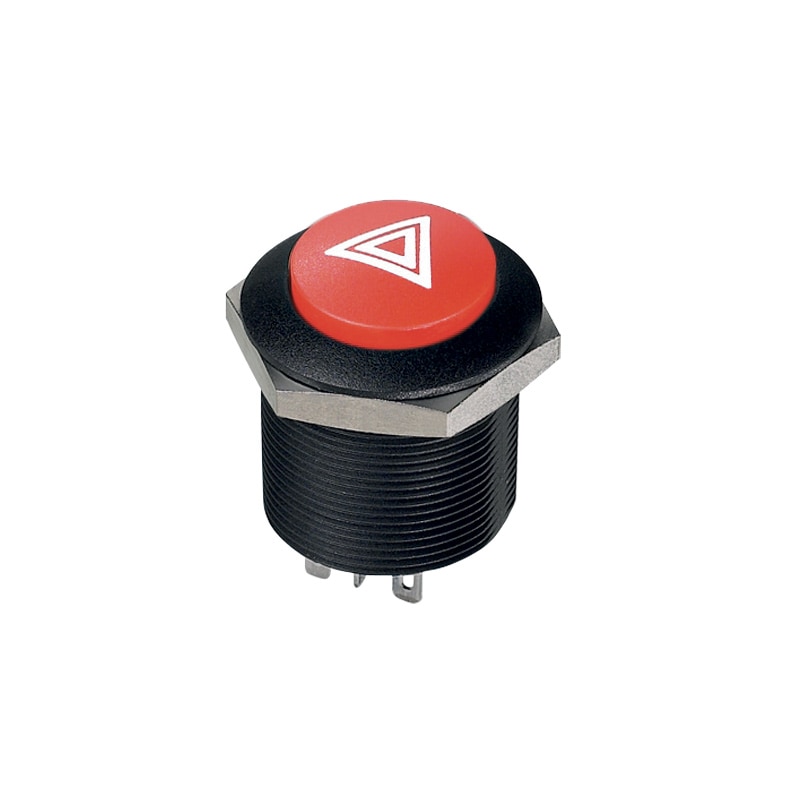

FPAR1C1262E2213
The FPAR1C1262E2213 Panel Switch is the perfect solution for all your electrical needs. With its reliable and efficient electrical functions, you can trust that this switch will deliver optimal performance. Whether you need to turn something on or off, this pushbutton switch has got you covered. Its solder lugs terminals ensure a secure and stable connection, so you can have peace of mind knowing that your electrical system is in good hands.
Key Features
- LED Color: White
- Actuator Colors: Red
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 24VDC Resistor
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
- Symbols: Hazard Warning
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
