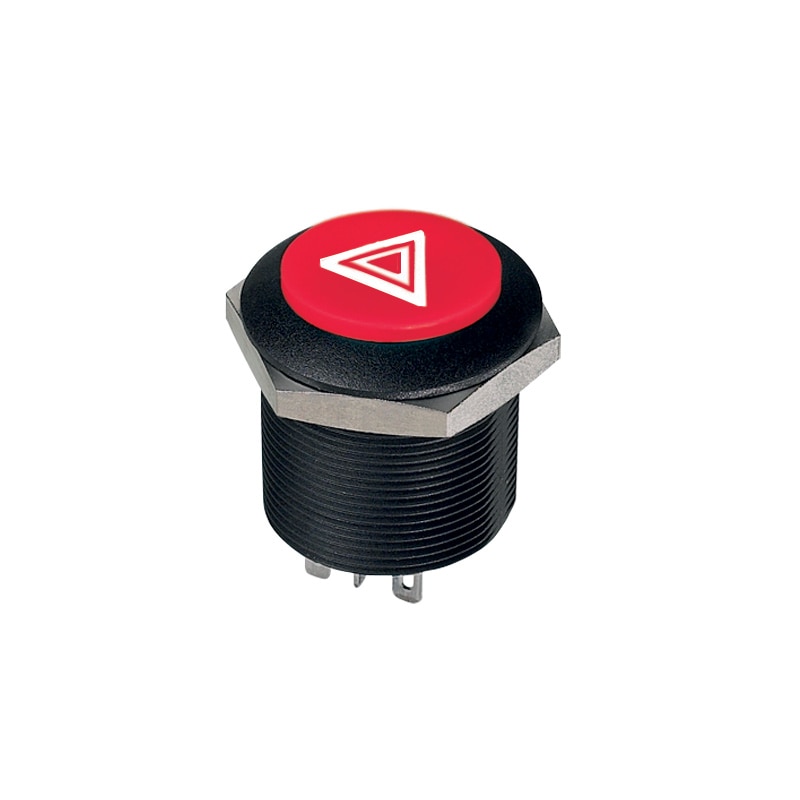

FPAR1C1262E1213
The FPAR1C1262E1213 Panel Switch is a versatile and reliable solution for all your electrical functions. With its sleek design and durable construction, it seamlessly integrates into any application. Whether you need to turn something on or off, this switch has got you covered. Its solder lugs terminals ensure a secure and stable connection, giving you peace of mind. Take control of your electrical systems with the FPAR1C1262E1213 Panel Switch.
Key Features
- LED Color: White
- Actuator Colors: Red
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 12VDC Resistor
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
- Symbols: Hazard Warning
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
