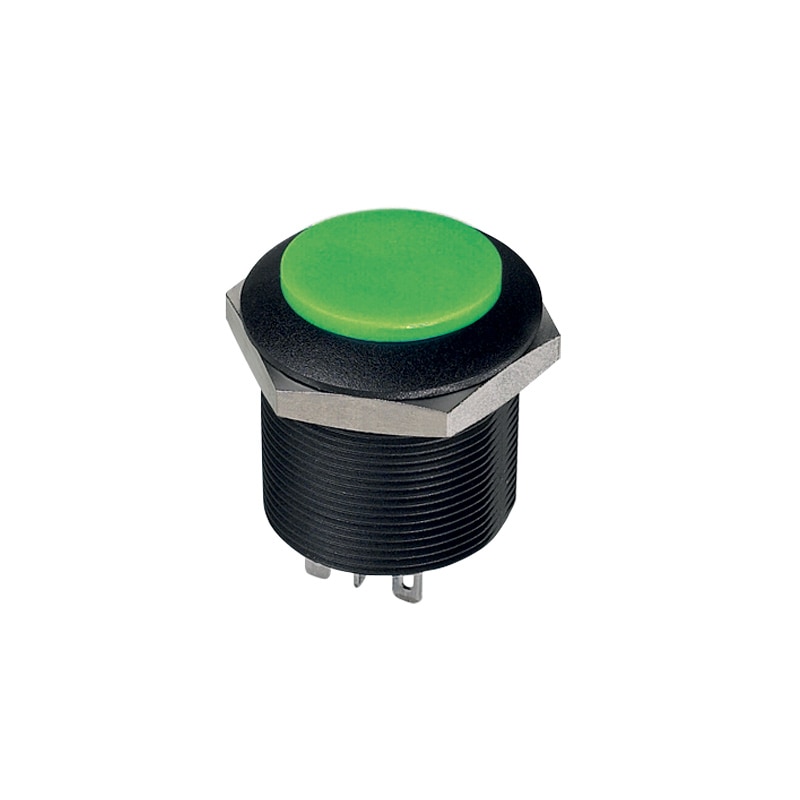

FPAP3D1232B2X
The FPAP3D1232B2X Panel Switch is designed with a focus on electrical functions, making it an ideal choice for a wide range of applications. Its category of Pushbutton Switches ensures reliable performance and seamless integration into any electrical system. With its normally open NO configuration, this switch allows for convenient control of electrical circuits. The FPAP3D1232B2X also features solder lugs terminals, providing a secure and efficient connection for your electrical needs.
Key Features
- LED Color: Green
- Actuator Colors: Green
- Actuators: Round, Flat
- Electrical Functions: Normally Open (NO)
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 2 Poles
- Led Resistors: 24VDC Resistor
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
