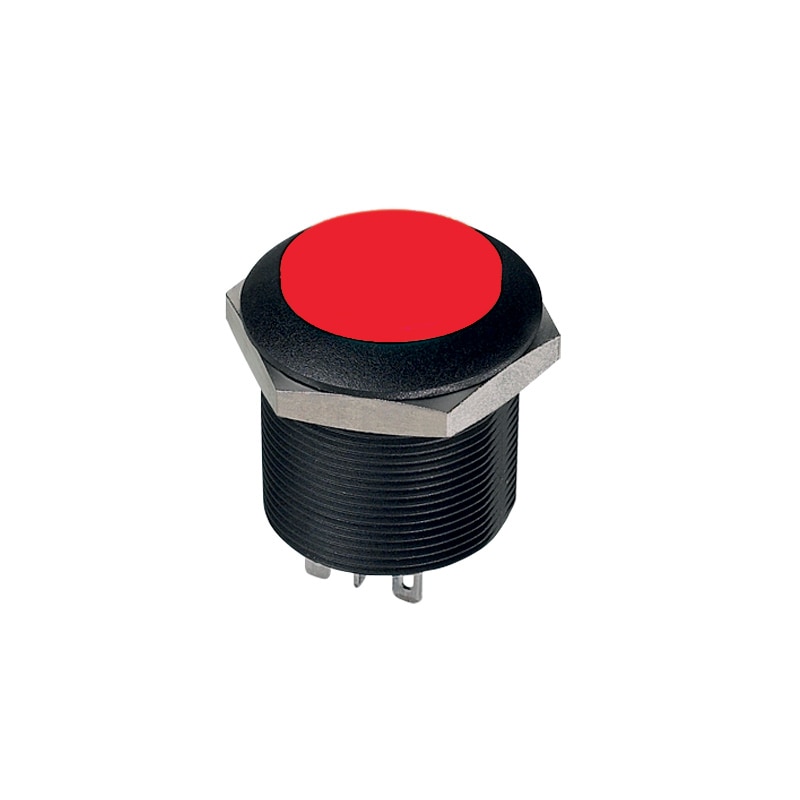

FPAP1D1262C0X
The FPAP1D1262C0X Panel Switch is designed to provide reliable and efficient electrical functions. With its sleek design and user-friendly interface, this switch is perfect for various applications. Its OFF-ON functionality ensures seamless operation, allowing users to easily control electrical circuits. The FPAP1D1262C0X is equipped with solder lugs for secure and stable connections, making installation a breeze.
Key Features
- LED Color: Red
- Actuator Colors: Red
- Actuators: Round, Flat
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent 2 Poles
- Led Resistors: No Resistor Supplied
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
