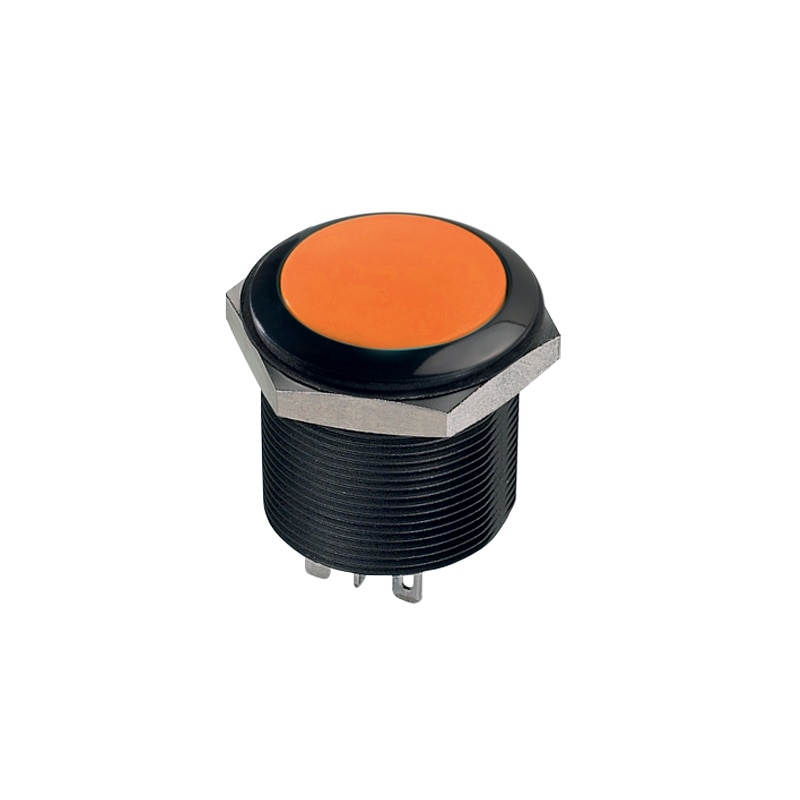

FPAF3C1492E1X
The FPAF3C1492E1X Panel Switch is designed to provide reliable and efficient electrical functions. With its normally open functionality, it ensures seamless operation for various applications. The solder lugs terminals make it easy to install and connect, ensuring a secure and stable connection. Upgrade your electrical system with the FPAF3C1492E1X Panel Switch and enjoy enhanced performance and convenience.
Key Features
- LED Color: White
- Actuator Colors: Orange
- Actuators: Round, Curved, Flush
- Electrical Functions: Normally Open (NO)
- Bezel Color: Black
- Contact Materials: Silver Gold-Plated
- Led Control And No Of Poles: Independent 1-Pole
- Led Resistors: 12VDC Resistor
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Solder Lug
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
