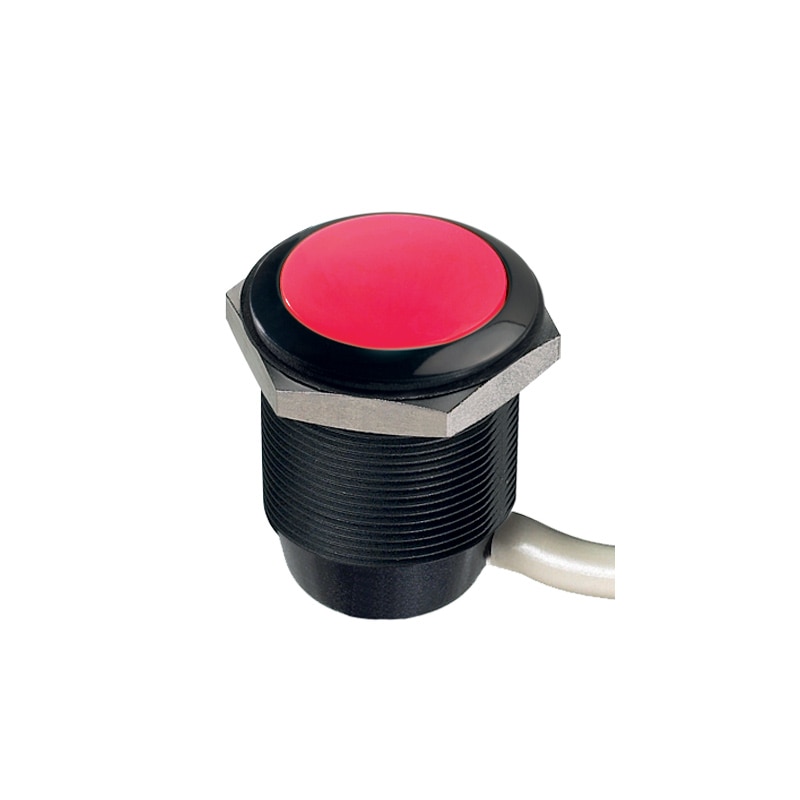

FPAF1F3262C2X
The FPAF1F3262C2X Panel Switch is the perfect solution for all your electrical functions. With its sleek design and reliable performance, it seamlessly integrates into any electrical system. Its terminals ensure easy installation, and the right angle cable length of 300 mm provides flexibility in wiring. Whether you need to turn something on or off, the FPAF1F3262C2X Panel Switch has got you covered.
Key Features
- LED Color: Red
- Actuator Colors: Red
- Actuators: Round, Curved, Flush
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Output Indicator : 1 Pole Function, Cable Only
- Led Resistors: 24VDC Resistor
- Markings: No Marking
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Right Angle Cable
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
