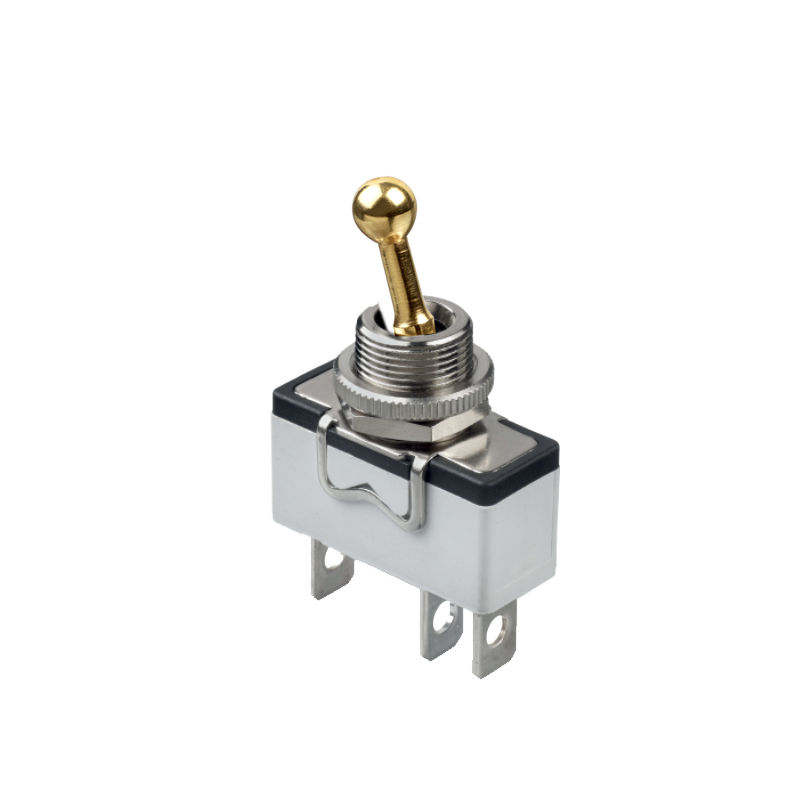

637H/2-6
The 637H/2-6 Panel Switch, with its sleek design and durable construction, is the perfect choice for any electrical application. With its single pole configuration, it provides reliable and efficient operation. Whether you need to control lighting, appliances, or other electrical devices, this switch has you covered. Its MOM OFF MOM electrical function ensures smooth and precise toggling between on and off positions. Equipped with metal lever solder lug quick connect terminals, installation is a breeze. Upgrade your electrical system with the 637H/2-6 Panel Switch for a seamless and efficient operation.
Key Features
- Number Of Poles: Single Pole
- Actuator Option: Retro-Style Actuator
- Electrical Functions: MOM OFF MOM
- Terminals: Metal Lever Solder Lug Quick Connect Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
