12256X778

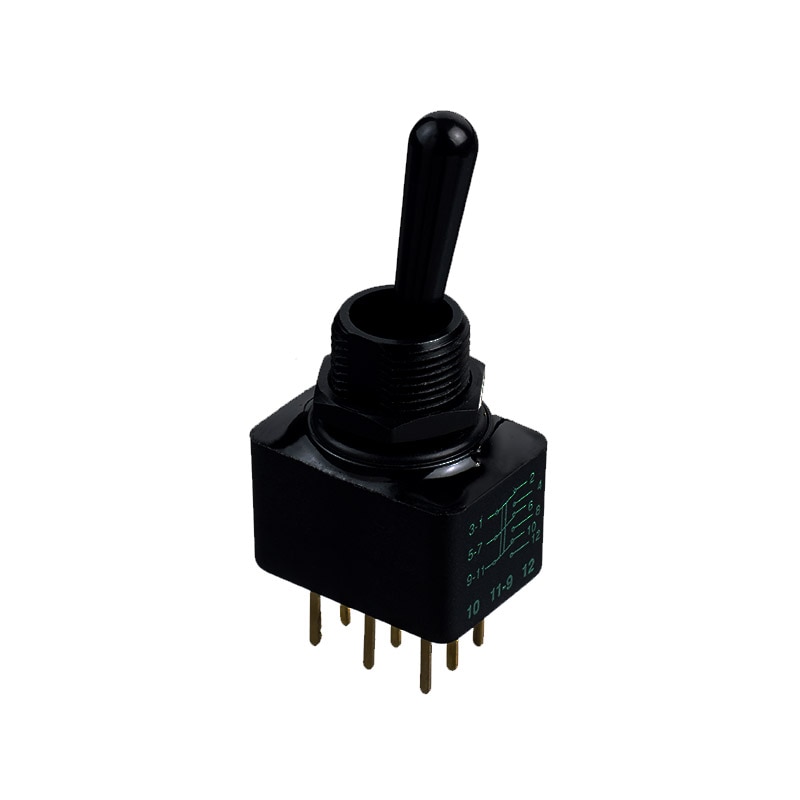

The 12256X778 Panel Switch is a versatile toggle switch that offers reliable performance and functionality. With its three poles, it provides excellent electrical connectivity and flexibility for a variety of applications. The switch is designed with an ON ON function, allowing for easy control and operation. Featuring a standard lever, it is comfortable to use and ensures smooth switching. Whether you need to control lighting, motors, or other electrical devices, the 12256X778 Panel Switch is the perfect choice for your needs.
Key Features
- Number Of Poles: Three Poles
- Electrical Functions: ON ON
- Fluorescent Tip: None
- Levers: Standard
- Terminals And Bushing: Straight PC
- X778: High Performance Fully Sealed Black Switches
Specifications
Distinctive Features:
- CECC approved - conforms to MIL specifications
- Highly reliable contacts
- Pinned lever
- Double shell case for high mechanical strength and highelectrical insulation
- Compact size
General Specifications:
- Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness : 8 mm (.314) max. - 3 mm (.118) min.
- Electrical life :- At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)
Environmental Specifications:
- Shock test : 50g - 11ms (IEC 68-2-27)
- Vibrations : 10-500 Hz - 10g (IEC68-2-6)
- Operating temperature : -40°C to +85°C
- Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
- Salt spray test : 96 hours (IEC 68-2-11)
- Front panel sealing by two O-rings Flatted bush for precise orientation
- Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
- Epoxy sealed terminals
- Splash-proof case
Electrical Specifications:
- Max. current/voltage rating with resistive load : 4A 28VDC
- Minimum load : 10mA 50mV, 10μA 5VDC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1.000 MΩ min. at 500VDC
- Dielectric strength :1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles
- Contact bounce : 2 ms max.
