12158X778

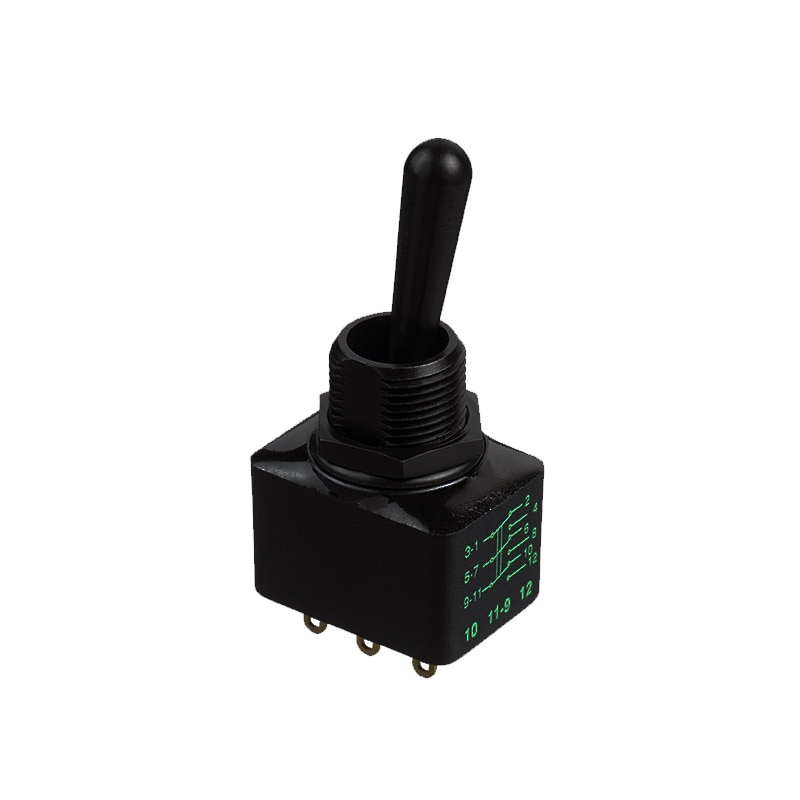

The 12158X778 Panel Switch is the perfect choice for any electrical setup. With its three poles, it provides excellent performance and reliability. Whether you need to control multiple circuits or simply want added flexibility, this switch has you covered. Its ON OFF MOM electrical functions allow for easy operation and seamless control. The switch also features a standard lever, ensuring comfortable and effortless usage. Upgrade your electrical system with the 12158X778 Panel Switch.
Key Features
- Number Of Poles: Three Poles
- Electrical Functions: ON OFF MOM
- Fluorescent Tip: None
- Levers: Standard
- Terminals And Bushing: Solder Lug Terminals
- X778: High Performance Fully Sealed Black Switches
Specifications
Distinctive Features:
- CECC approved - conforms to MIL specifications
- Highly reliable contacts
- Pinned lever
- Double shell case for high mechanical strength and highelectrical insulation
- Compact size
General Specifications:
- Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness : 8 mm (.314) max. - 3 mm (.118) min.
- Electrical life :- At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)
Environmental Specifications:
- Shock test : 50g - 11ms (IEC 68-2-27)
- Vibrations : 10-500 Hz - 10g (IEC68-2-6)
- Operating temperature : -40°C to +85°C
- Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
- Salt spray test : 96 hours (IEC 68-2-11)
- Front panel sealing by two O-rings Flatted bush for precise orientation
- Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
- Epoxy sealed terminals
- Splash-proof case
Electrical Specifications:
- Max. current/voltage rating with resistive load : 4A 28VDC
- Minimum load : 10mA 50mV, 10μA 5VDC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1.000 MΩ min. at 500VDC
- Dielectric strength :1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles
- Contact bounce : 2 ms max.
