1202C6

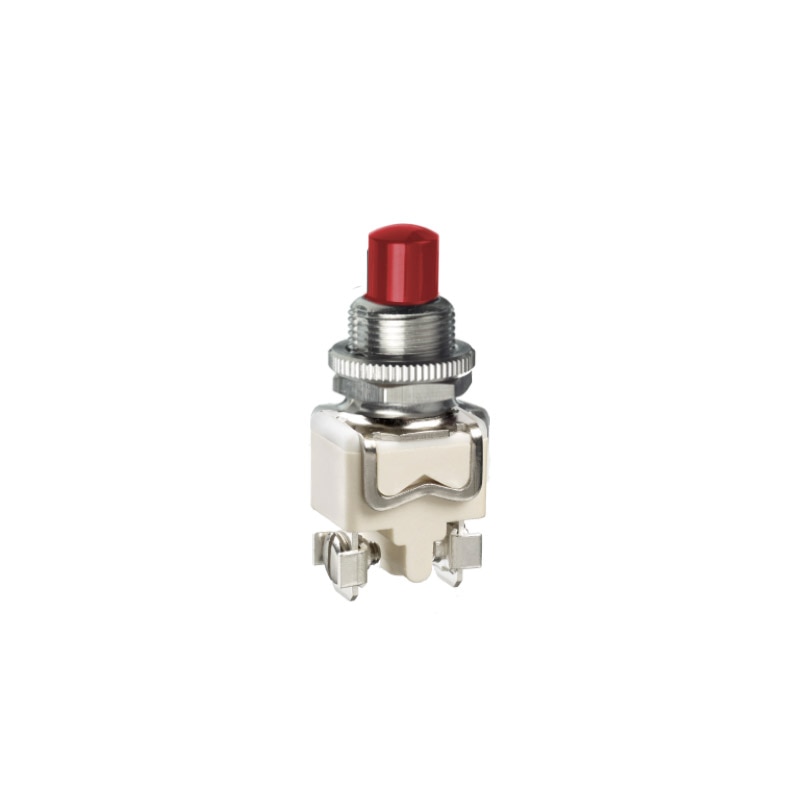

The 1202C6 Panel Switch, also known as a Pushbutton Switch, is the perfect solution for your electrical needs. With its sleek design and reliable performance, this switch is ideal for controlling various electrical functions. It features a normally closed configuration, ensuring that the circuit is closed by default and only opens when the switch is pressed. Trust the 1202C6 to provide reliable and efficient electrical functionality in any application.
Key Features
- Electrical Functions: Normally Closed (NC)
- Mounting: Screw Terminal Clamp
- Contact Materials: Copper (Silver-Plated)
- Plunger Colors: Red
Specifications
Distinctive Features:
- Butt action contacts
- Double break
- NF (EN 61058-1), UL and CSA approved
General Specifications:
- Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness : 5 mm (.196) max.
- Total travel :NO : 4.5 (.177) +/- 0.3 (.011)NC : 3.5 (.137) +/- 0.3 (.011)
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (A) : 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 VDC- silver plated copper contacts (C) : 2 A 250 VAC - 3 A 125 VAC - 2 A 24 VDC - 3 A 12 VDC
- Initial contact resistance : 10 mΩ
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength :2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame
- Electrical life : 10,000 cycles at full load
