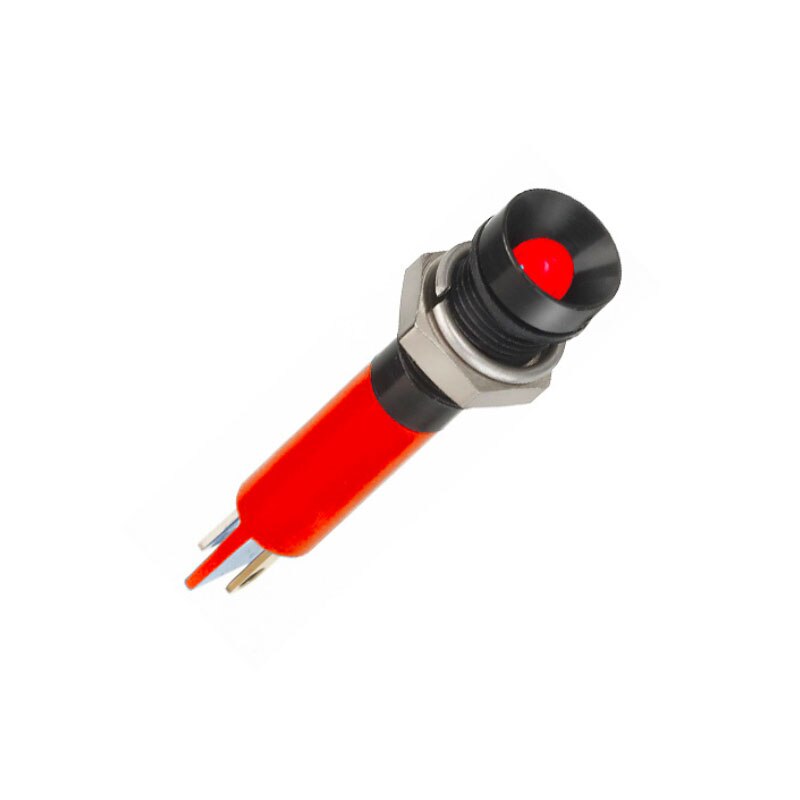

Q8R1BXXR110E
The Q8R1BXXR110E LED Indicator is a versatile and reliable lighting solution for a variety of applications. With an 8 mm mounting hole, it can easily be installed in any compatible panel or device. The recessed bezel style adds a sleek and modern touch to its appearance. The solder lug fastons terminals ensure a secure and stable connection. Finished in black, it effortlessly blends into any environment. The fixed red light illumination provides a clear and visible indication. Operating at a voltage of 110 VAC, it is suitable for a wide range of power systems. With an IP67 sealing, it is protected against dust and water, making it ideal for both indoor and outdoor use.
Key Features
- Mounting Hole: 8 mm
- LED Color: Red
- Voltage: 110V AC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
