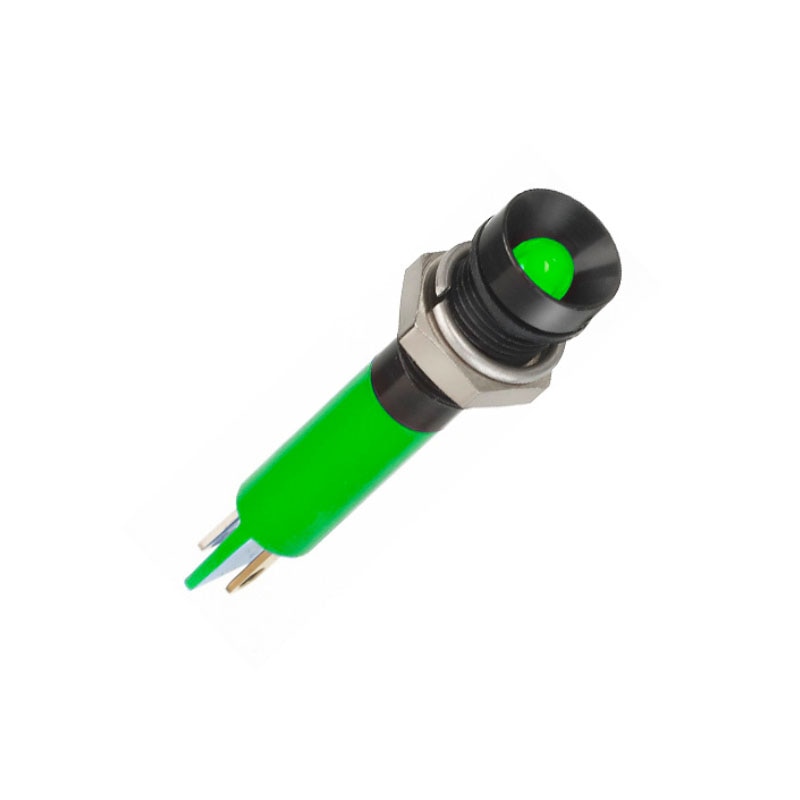

Q8R1BXXG12E
Introducing the Q8R1BXXG12E LED Indicator, the perfect solution for all your lighting needs. With its 8mm Mounting Hole, it can easily be installed in any application. The Recessed Bezel Style adds a sleek and modern touch to any design. The Solder Lug Fastons Terminals ensure a secure and reliable connection. The Black Bezel Finish gives it a polished and professional look. The Fixed Light Type Of Illumination provides a steady and constant glow. The Green LED Color emits a vibrant and eye-catching light. With a Voltage of 12 VDC, it is energy efficient and long-lasting. The IP67 Sealing ensures protection against dust and water. Upgrade your lighting system with the Q8R1BXXG12E LED Indicator.
Key Features
- Mounting Hole: 8 mm
- LED Color: Green
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
