Q8P5BXXB02E

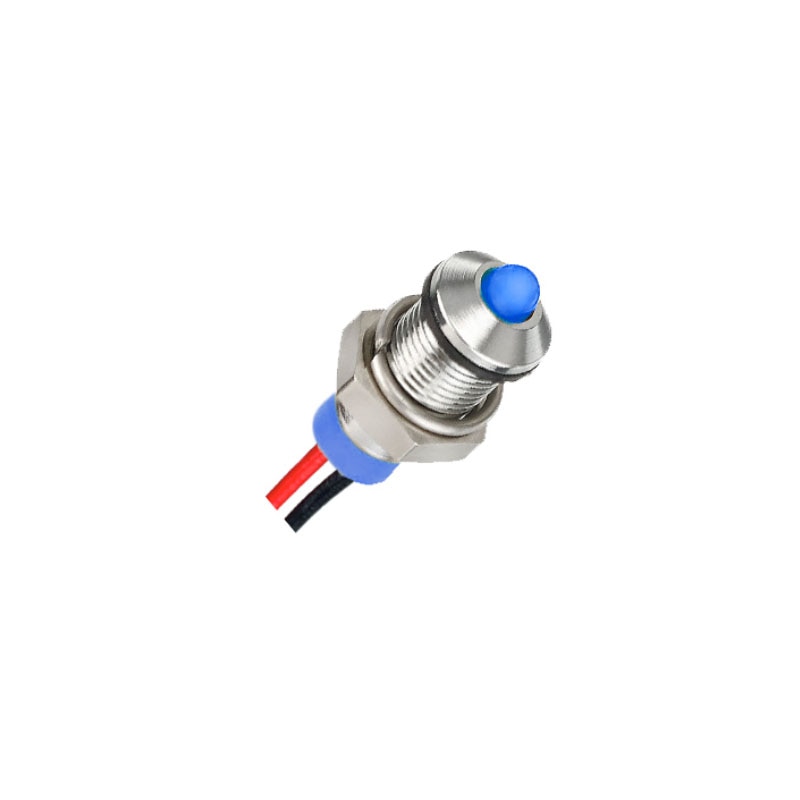

The Q8P5BXXB02E LED Indicator is a versatile and reliable product that will meet all your indicator needs. Its 8 mm Mounting Hole ensures easy installation on any surface. The Prominent Bezel Style adds a touch of elegance to any design. With Rear epoxy Wires Terminals, you can trust that the connections will be secure and stable. The Black Bezel Finish gives it a sleek and modern look. The Fixed Light Type Of Illumination ensures a consistent and constant glow. The Blue LED Color adds a vibrant and eye-catching element. With no resistor, the Voltage can be adjusted to your specific requirements. And with an IP67 Sealing, you can be confident in its durability and protection against dust and water.
Key Features
- Mounting Hole: 8 mm
- LED Color: Blue
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
