Q8P4BXXR02E

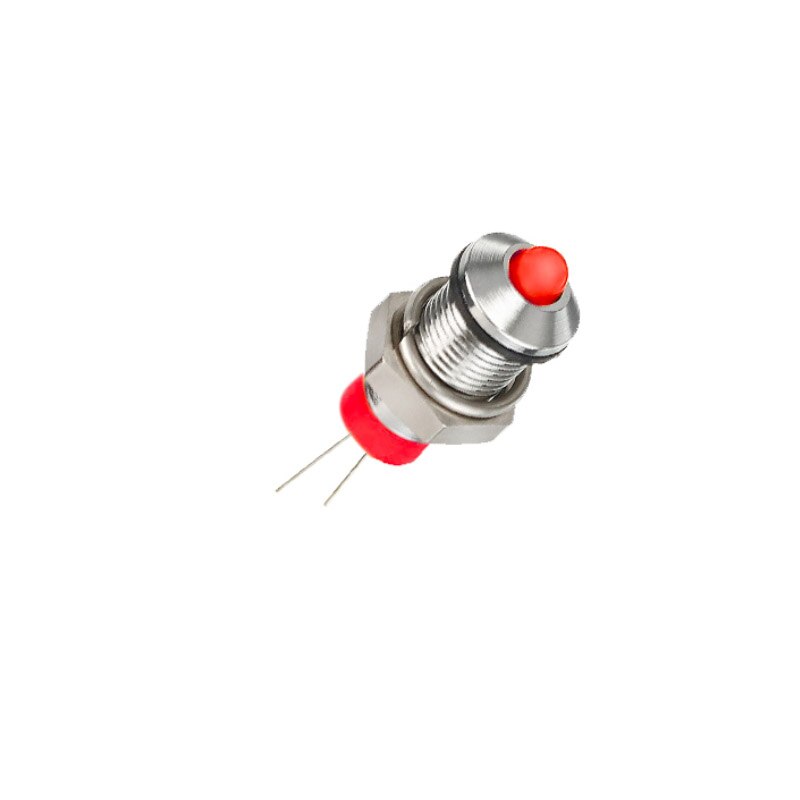

The Q8P4BXXR02E LED Indicator is a versatile and reliable component that is perfect for a wide range of applications. With its 8mm mounting hole, it can easily be installed in various devices and systems. The prominent bezel style adds a sleek and modern touch to any design. The rear epoxy pins terminals ensure secure and stable connections. Its black bezel finish gives it a sophisticated and professional look. The fixed red light illumination provides clear and vibrant signaling. With a voltage rating of no resistor, it can be easily integrated into existing circuits. And with its IP67 sealing, it is protected against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 8 mm
- LED Color: Red
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Rear Epoxy Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
