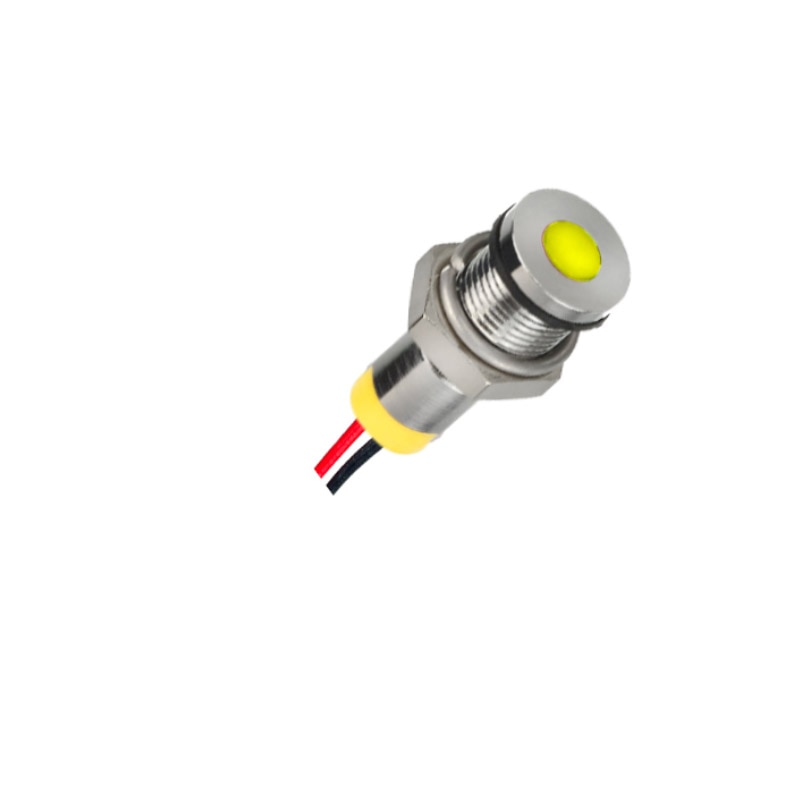

Q8F5BXXY02E
Panel mount LED indicators with 5mm coloured diffused epoxy lens or 5mm water clear super bright LEDs.
![Q8F5BXXY02E](/medias/Q8-flush-chrome-shortbezelwires-yellow.jpg?context=bWFzdGVyfGNsb3VkaW1hZ2VzfDQ0NjY4fGltYWdlL2pwZWd8aDAwL2hmMS85MjQ4MDA4MDExODA2L1E4X2ZsdXNoX2Nocm9tZV9zaG9ydGJlemVsd2lyZXNfeWVsbG93LmpwZ3wzNzU5ZDMwOWFiZjIyNzI1MTUxNGFiMDU0YjdmOTRlMDYwYmM5MmQxMDIwZWVhNDY4MWQzNDQ3ZDJhMzBjYTY3)
Wesentliche Merkmale
- Serie: Q
- Dichtung: IP67
- Stromspannung: no resistor
- LED-Farbe: Gelb
- Terminals: Epoxiddrähte hinten
- Gehäusetyp: Spülen
- Gehäusematerial: Schwarz
- Befestigungsloch: Ø8mm
- Art der Beleuchtung: Festes Licht
Spezifikationen
Unterscheidungsmerkmale:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
Allgemeine Spezifikation:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Umgebungsbedingungen:
- Panel sealed up to IP67 according to EN 60529
Elektronische Spezifikationen:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
Materialien:
- Plated brass bezel finished in bright chrome, black or satin greyand molded polycarbonate rear body
- Stainless Steel 316L bezel in flush version only
