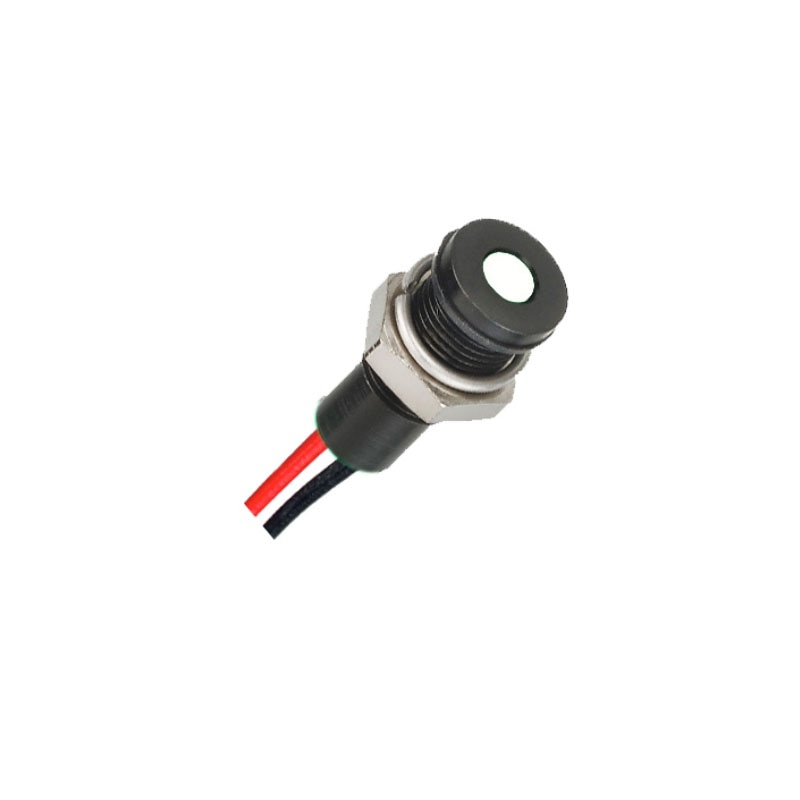

Q8F5BXXW02E
The Q8F5BXXW02E LED Indicator is a versatile and reliable product that is perfect for a variety of applications. With its 8 mm mounting hole, it can easily be installed in any compatible panel or device. The flush bezel style gives it a sleek and modern look, while the black bezel finish adds a touch of elegance. The rear epoxy wires provide secure and durable connections, ensuring long-lasting performance. The fixed white light illumination offers clear and bright visibility in any environment. With its IP67 sealing, this LED indicator is resistant to dust, water, and other environmental factors. Whether you need a visual indicator for machinery, control panels, or other electronic devices, the Q8F5BXXW02E LED Indicator is the perfect choice.
Key Features
- Mounting Hole: 8 mm
- LED Color: White
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
