Q6F3CXXG24E

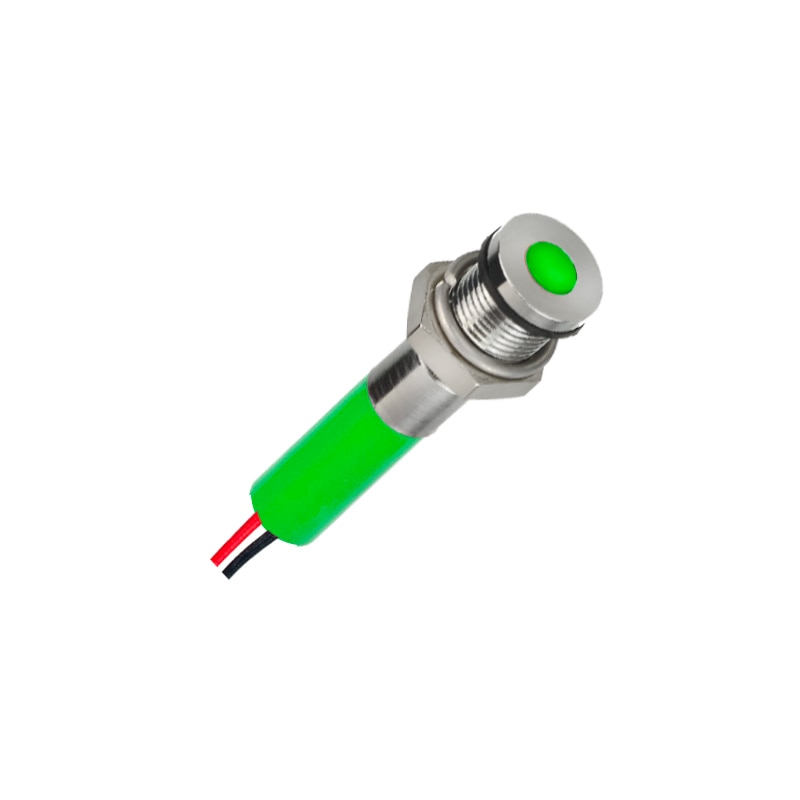

Introducing the Q6F3CXXG24E LED Indicator, a compact and reliable device that will revolutionize your visual signaling needs. With its sleek design and flush bezel style, this indicator seamlessly integrates into any application. The 6 mm mounting hole ensures easy installation, while the bright chrome bezel finish adds a touch of sophistication. Emitting a fixed green light, this LED indicator captures attention and provides clear illumination. Its 24 VDC voltage ensures optimal performance, and the IP67 sealing guarantees protection against dust and water. With convenient wire terminals, this LED indicator is ready to be integrated into your system seamlessly.
Key Features
- Mounting Hole: 6 mm
- LED Color: Green
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 3 mm colored diffused epoxy lens or 3 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles
- (2.0 x 0.5) solder lug terminals, pins or (200 mm long) wireterminations, other lengths available on request
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40°C to +85°C *
- Torque: 4cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
Electrical Specifications:
- (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
