Q16P1CXXG12E

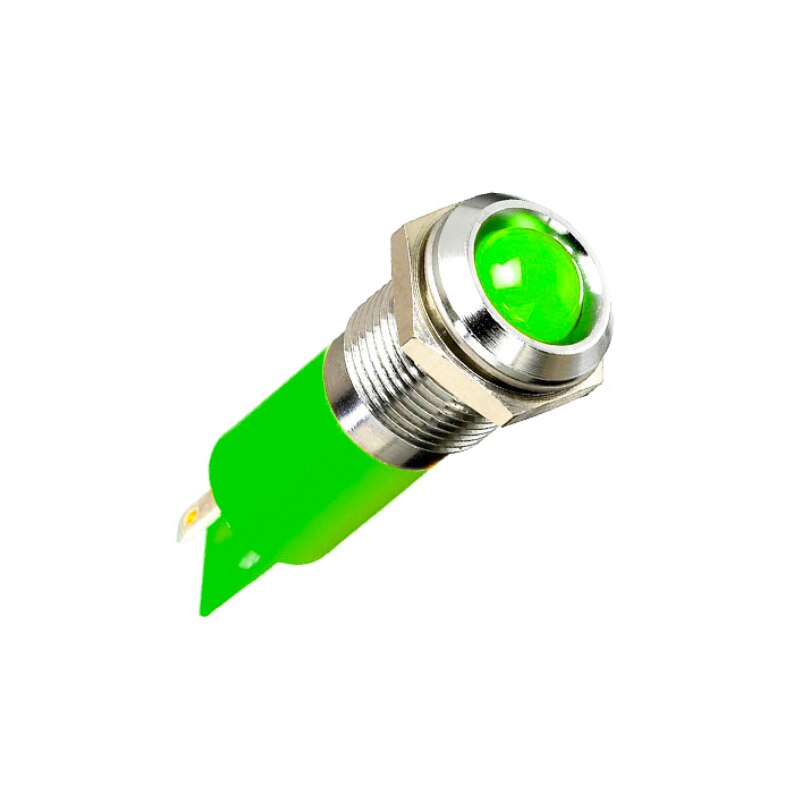

The Q16P1CXXG12E LED Indicator is a versatile and reliable solution for various applications. With its 16 mm Mounting Hole, it can easily fit into any compatible panel or device. Its Prominent Bezel Style adds a touch of elegance to the overall design. The Solder Lug Fastons 28 x 08 Terminals ensure secure and efficient connections. The Bright Chrome Bezel Finish gives it a sleek and polished look. The Fixed LightKK Type of Illumination provides a consistent and steady light output. The Green LED Color offers clear visibility in any environment. With a 12 VDC Voltage, it is suitable for a wide range of power sources. Its IP67 Sealing ensures protection against dust and water, making it durable and suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 16 mm
- LED Color: Green
- Voltage: 12V DC
- Sealing: IP67
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- Secret until lit polycarbonate decals or custom engraving10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C *
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
