Q14F5ARXXHR24E

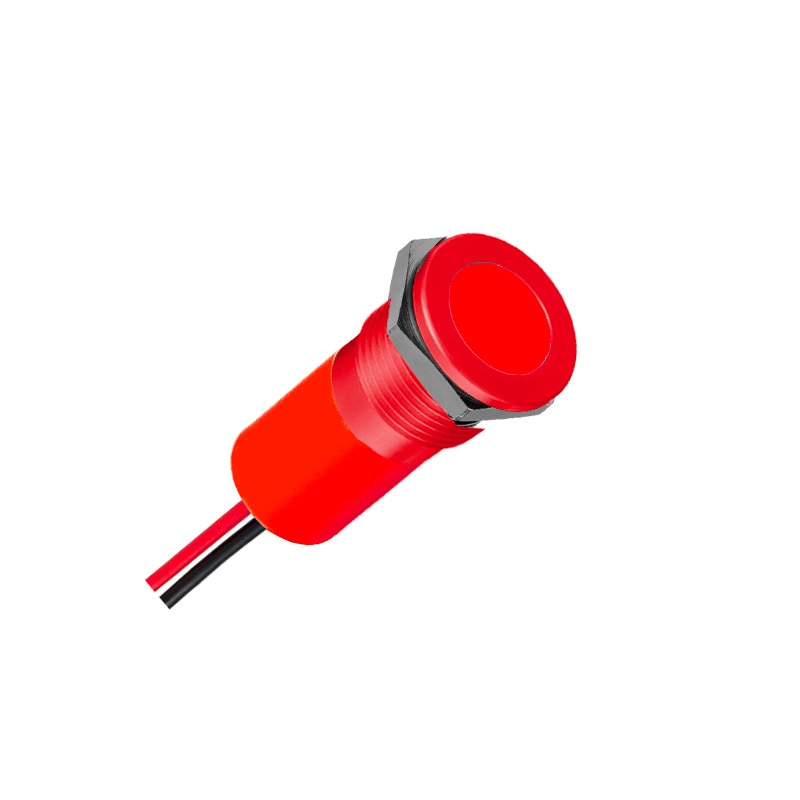

The Q14F5ARXXHR24E LED Indicator is a versatile and reliable component for various applications. With a 14mm Mounting Hole, it is easy to install and fits securely in place. The Flush Bezel Style adds a sleek and seamless look to any device. The Rear epoxy Wires Terminals provide a secure and durable connection. The Red Bezel Finish adds a touch of sophistication to the design. With Fixed Light Type Of Illumination, it ensures a consistent and steady glow. The Hyper Bright Red LED Color is eye-catching and vibrant. Operating at 24 VDC Voltage, it provides efficient and reliable performance. With an IP67 Sealing, it is protected against dust and water, making it suitable for outdoor use.
Key Features
- Mounting Hole: 14mm
- LED Color: Hyper Bright Red
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Red
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
