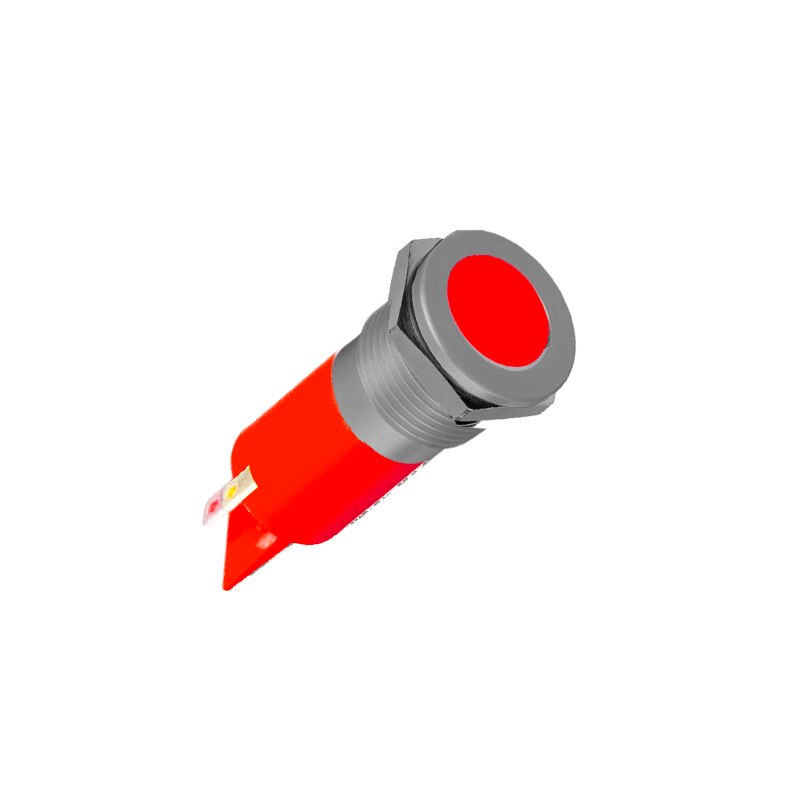

Q14F1GZZRYG02E
Introducing the Q14F1GZZRYG02E LED Indicator, a versatile and reliable choice for all your signaling needs. With its 14mm Mounting Hole, this indicator can be easily installed in a variety of applications. The sleek Flush Bezel Style adds a touch of modernity to any design. The Terminals are equipped with Solder Lug Fastons 28 x 08 for secure and efficient connections. The Bezel Finish in Satin Grey gives this indicator a polished and professional look. Choose from Tri color illumination for versatile signaling options. The LED Color options of Red, Yellow, and Green allow for clear and visible indications. With no resistor needed for operation, this indicator offers convenience and simplicity. And with its IP67 Sealing, you can trust that this indicator is built to withstand the elements and provide reliable performance.
Key Features
- Mounting Hole: 14mm
- LED Color: Red/Yellow/Green
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Satin Gray
- Type Of Illumination: Tricolor
- Bezel Style: Flush
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
