Q12P6BZZRYG02E

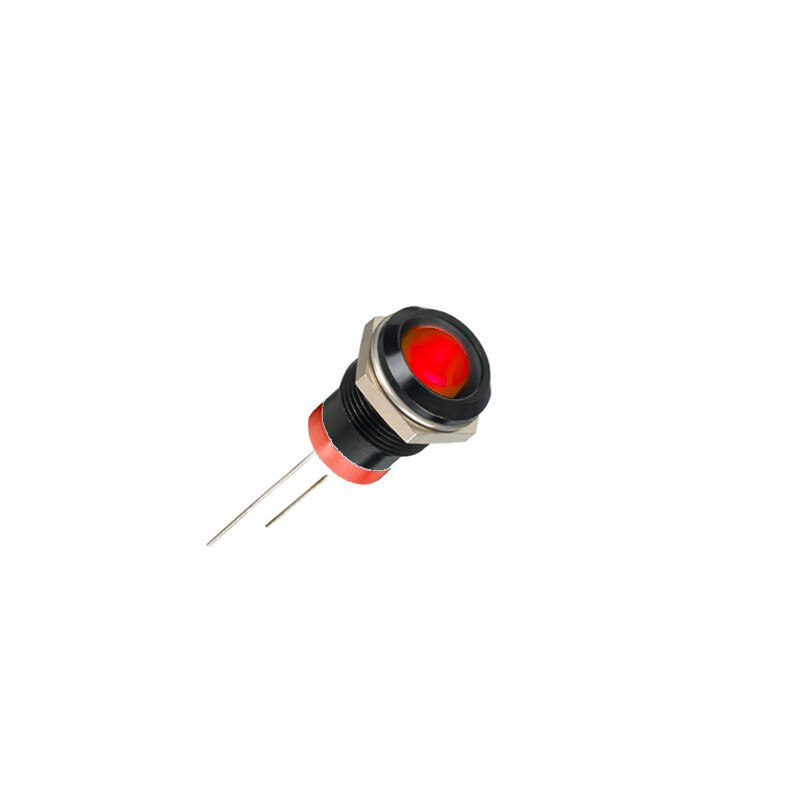

The Q12P6BZZRYG02E LED Indicator is a versatile and reliable product designed to meet your illumination needs. With its 12 mm mounting hole, it can easily be installed in various applications. The prominent bezel style adds a touch of elegance to your devices. The short body pins terminals make the installation process quick and effortless. The black bezel finish gives it a sleek and modern look. With its tri-color illumination, you can choose between red, yellow, and green LED colors to suit your preference. This LED Indicator operates at a voltage without a resistor, providing you with flexibility in your electrical setup. Additionally, its IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.

Key Features
- Mounting Hole: 12 mm
- LED Color: Red/Yellow/Green
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Short Body Pins
- Bezel Finish: Black
- Type Of Illumination: Tricolor
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
