QRM-NV84BXXNV-GRA02E

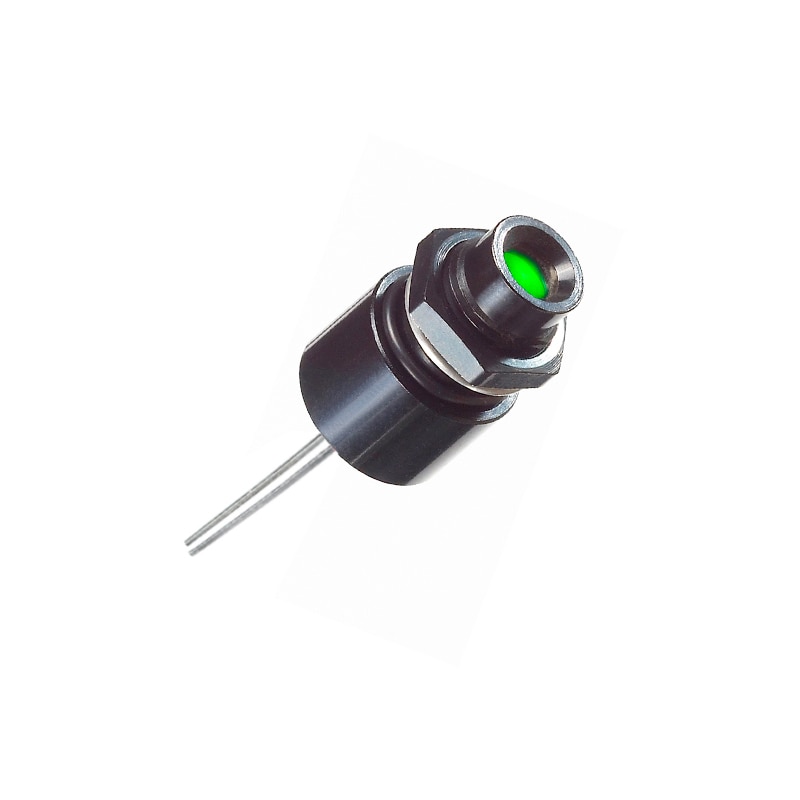

The QRM-NV84BXXNV-GRA02E is a LED indicator with a mounting hole diameter of 8mm. It features rear epoxy pins for easy terminal connection. The bezel finish is black, providing a sleek and professional look. It offers fixed light illumination, with NVIS Green A LED color. The voltage is designed to work without a resistor. With an IP67 sealing rating, it is highly resistant to dust and water, ensuring reliable performance in various environments.
Key Features
- Mounting Hole: 8 mm
- LED Color: NVIS Green (A)
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Rear Epoxy Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- NVIS Green A, NVIS Green B, NVIS Yellow, NVIS Red, NVIS White
- NVIS compliant to MIL Std 3009
- 200 mm wire for Ø 8 and 14 mm or rigid pin (1.00 mm) for Ø8 mm
- Terminations
General Specifications:
- The QRM Series 8mmØ diameter indicators are rear mounted, epoxy sealed LED indicators designed for night vision applications. They are available in bi-colored and tri-colored LEDs. The QRM are: - NVG Compatible - NVIS Compliant to MIL Std 3009 - IP67 sealed to EN60529 - Rear end epoxy sealed - Black chrome finish
Environmental Specifications:
- IP67 sealed (EN60529)
Electrical Specifications:
- Max Reverse Voltage: 5VViewing Angle: 60°Life Expectancy: 100,000 hoursOperating Temperature Range: –40 to +85°CStorage Temperature Range: –55 to +100°CMax panel thickness: 3.5mmTorque: 60cNm
