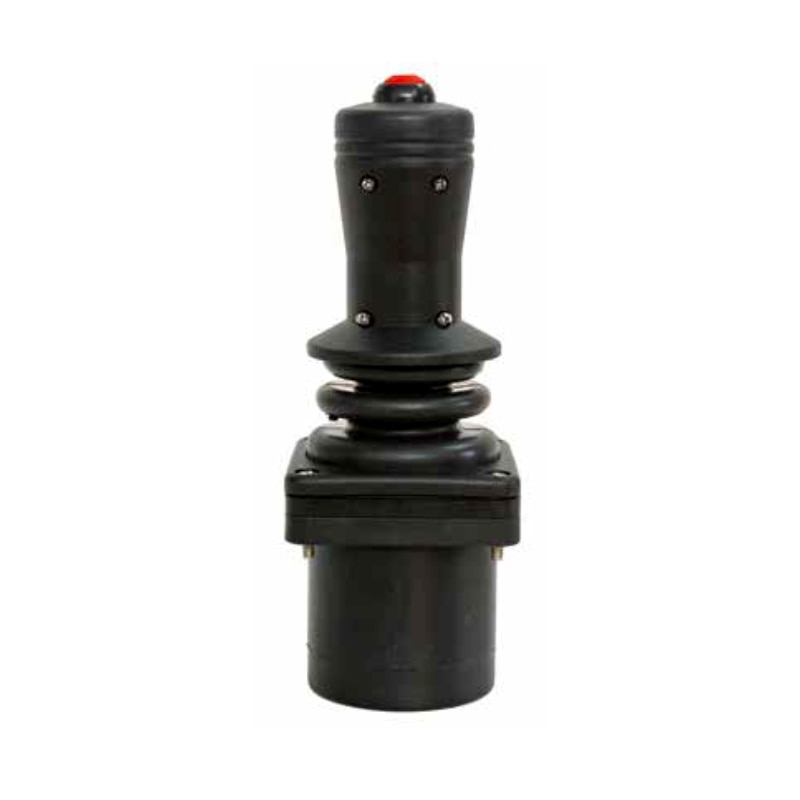

MS31N00X001E
The MS31N00X001E Joystick is perfect for applications that require precise control and smooth handling. Its short stock grip provides a comfortable and ergonomic grip for extended use. The slotted horizontal limiter allows for precise movement within a defined range, preventing excessive motion. With output options ranging from 05V to 45V, this joystick is compatible with a wide range of devices and control systems.
Key Features
- Handle: Short Stock Grip
- Front Buttons: None
- Side Buttons: None
- Additional Options: Environmental Sealing
Specifications
Distinctive Features:
- One, two or three axis
- Analog output10 million lifecycles
- CAN bus J1939 and CANopen outputs available
- Redundant outputs available
General Specifications:
- Compact size
- 1,2 and 3 axis configurations
- Available with J1939 CANbus
- Available with USB 1.1
- Redundant outputs available
Environmental Specifications:
- Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
- Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
- Sealing (IP): Up to IP68
- EMC Immunity Level (V/M): IEC 61000-4-3:2006
- EMC Emissions Level: IEC 61000-4-8:2009
- ESD: IEC 61000-4-2:2008
Electrical Specifications:
- Sensor: Hall effect
- Supply Voltage Operating: 5.00VDC
- Reverse Polarity Max: -14.5VDC
- Overvoltage Max : 18VDC
- Output Impedance: 6Ω
- Current Consumption Max: 10mA max per axis
- Return to Center Voltage (No Load): ±200mV
