XDGTT2MNNCYYHAN

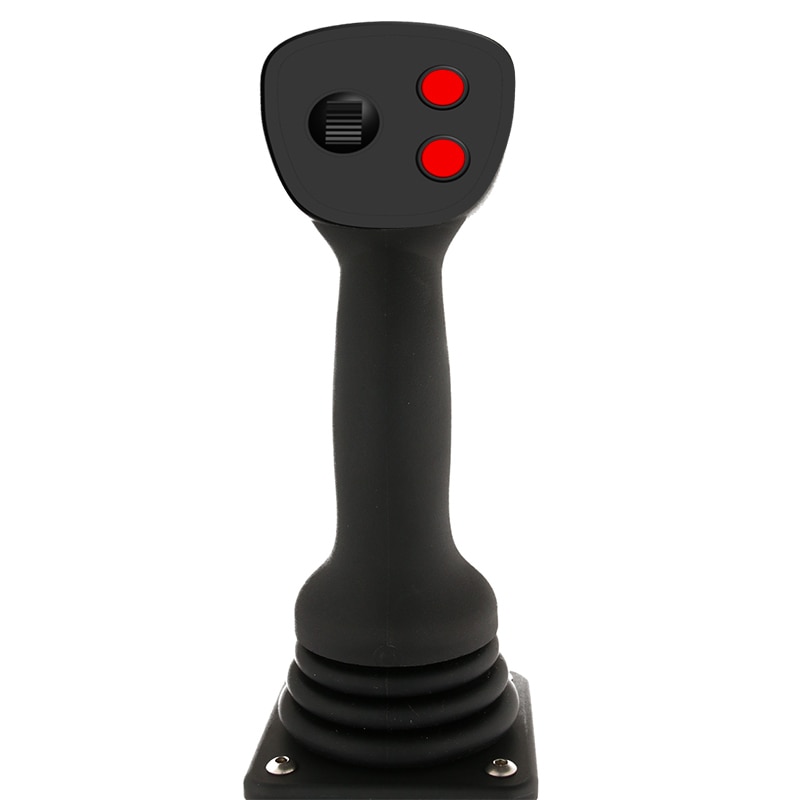

Introducing the XDGTT2MNNCYYHAN Joystick, a versatile and ergonomic handle designed for optimal control. With its precise centering feature, you can easily navigate and maintain stability. The joystick's operating force of 124Nm ensures a comfortable and responsive user experience. Connect seamlessly with other devices through its SAE CAN bus J1939 71 output. Equipped with an operator presence paddle and index trigger, this joystick enhances safety and efficiency. The faceplate includes a toggle switch and two pushbuttons for added convenience.
Key Features
- Centering: Spring Centering
- Operation: Two Axes
- Mechanical: None
- Operating Force: 1.24NM
- Operator Presence Paddle: Yes
- Face plate: Toggle Switch, Two Pushbuttons
Specifications
Distinctive Features:
- SIL 2 compatible - Redundant Hall sensors
- Resists high axial load (1780 N - 400 lbf)
- Shallow mounting depth of <60 mm (2.36)
- Rated for 10 million lifecycles
- SAE CAN bus J1939-71
General Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67 (subject to handleconfiguration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
Environmental Specifications:
- Random vibration: IEC 60068-2-64
- Sinusoidal vibration: IEC 60068-2-6
- EMS Emissions:- Radiated Emissions Level: ECE/324/Add.9:2012 CISPR 25:2002- Radiated Emissions Level: CISPR 25:2008
- EMS Immunity:- ESD: ISC 10605:2008 criteria A- Radiated immunity: ISO 11452-2:2004 criteria B- Bulk current injection immunity: ISO 11452-4:201 criteria A- Pulse 1, Pulse 2a, Pulse 2b, Pulse 3a, Pulse 3b, Pulse 4, Pulse 5a:ISO 7637-2:2011 criteria A
Electrical Specifications:
- Technology: Redundant Hall effect sensors
- Supply voltage range: 6 - 35 VDC
- Transient overvoltage max: 40 V
- Reverse polarity Max: -1000 VDC
- Output signal: SAE CAN bus J1939-71
- Connections: Deutsch DTM04-6p
- Six position connector: Deutsch DTM04-6P
- Wire: 22 AWG, PTFE insulation with expandable sleeve
- Length: 6.00” +/- 0.5” (bottom of joystick to connector)
