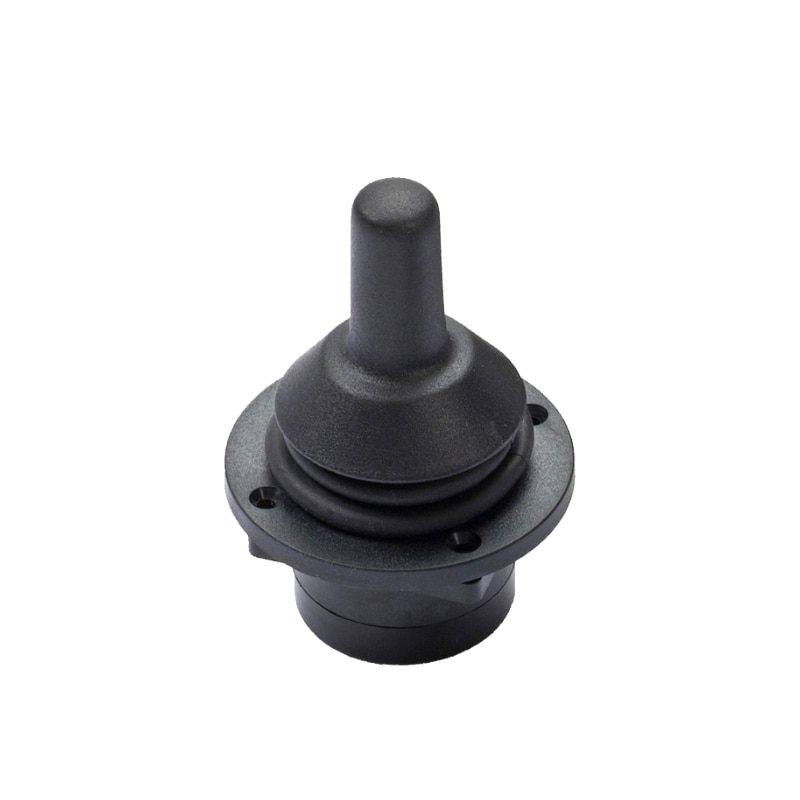

3140AQ400
The 3140AQ400 Joystick is the perfect tool for precise control in a variety of applications. With its sleek and ergonomic design, it offers enhanced maneuverability and ease of use. The Gain feature allows for fine-tuning sensitivity, ensuring optimal performance. The Limiter function adds an extra layer of safety by preventing overextension in a single axis. The comfortable Handle provides a firm grip, allowing for extended use without discomfort. The Bezel's circular shape below the panel adds a stylish touch to any device. Upgrade your control experience with the 3140AQ400 Joystick.
Specifications
Distinctive Features:
- One, two or three axis
- Analog or PWM outputs
- Low profile less than 20 mm below panel depth5 V or 3.3 V operation
- Metal mechanism
General Specifications:
- Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks)
- Seal Above Panel: IP66 (dependant on configuration)
Environmental Specifications:
- Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
- Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
- EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz
- ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges)
- EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
- Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis)
Electrical Specifications:
- Gain (Output Voltage Span): ±10% x V to ±50% x V
- Output at Center: V/2 ±(5% x Gain)
- Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
- Center Tap Impedance: 1K1
- Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF
- Sensor Type: Hall effect
- Analog PWM CAN J1939 & CANopen outputs
- Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis)
- Loads: Minimum 10K, preferred 100K+
