3130SE020

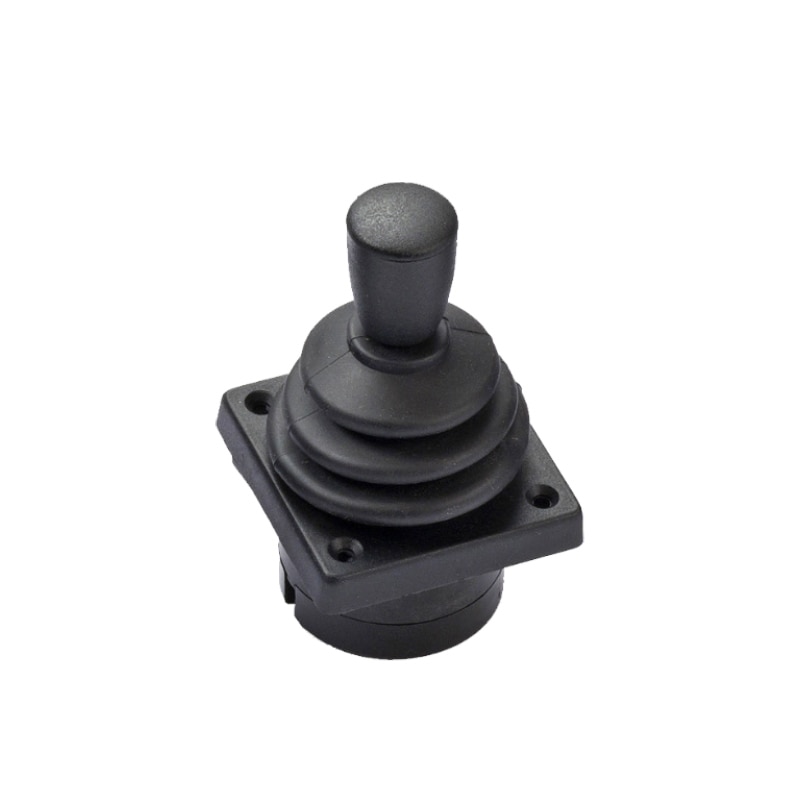

The 3130SE020 Joystick is designed to provide precise control and enhanced functionality. With its Gain feature, you can adjust the sensitivity to achieve the desired response. The Limiter function ensures that the joystick movement stays within a predefined range, preventing any accidental overshooting. The ergonomic Handle design offers a comfortable grip, allowing for extended use without fatigue. The sleek Bezel adds a touch of sophistication to the overall look. Upgrade your control experience with the 3130SE020 Joystick.
Specifications
Distinctive Features:
- One, two or three axis
- Analog or PWM outputs
- Low profile less than 20 mm below panel depth5 V or 3.3 V operation
- Metal mechanism
General Specifications:
- Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks)
- Seal Above Panel: IP66 (dependant on configuration)
Environmental Specifications:
- Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
- Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
- EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz
- ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges)
- EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
- Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis)
Electrical Specifications:
- Gain (Output Voltage Span): ±10% x V to ±50% x V
- Output at Center: V/2 ±(5% x Gain)
- Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
- Center Tap Impedance: 1K1
- Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF
- Sensor Type: Hall effect
- Analog PWM CAN J1939 & CANopen outputs
- Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis)
- Loads: Minimum 10K, preferred 100K+
