Q12F1BXXB24E

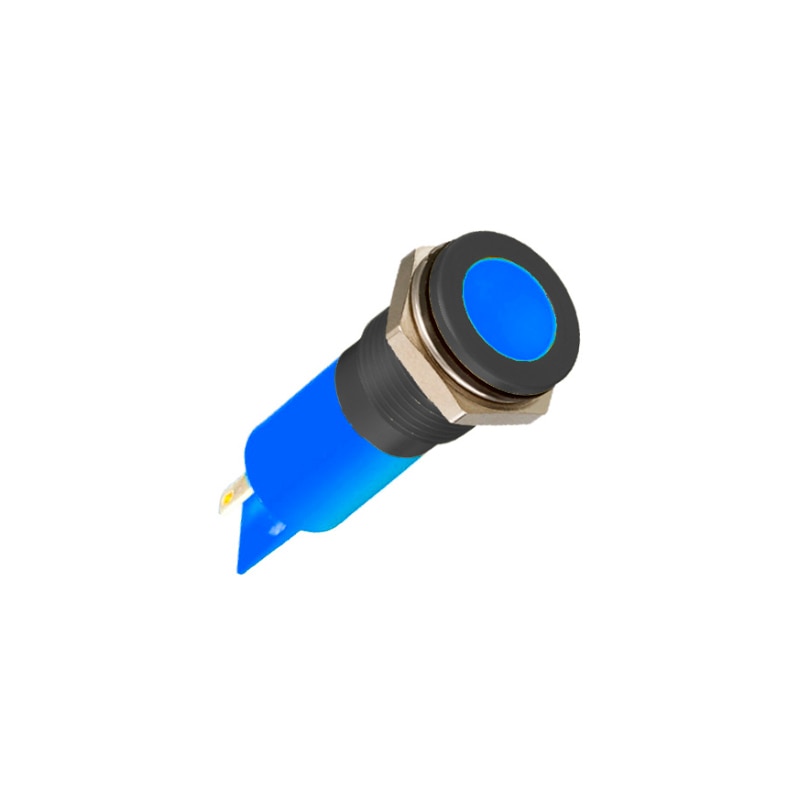

The Q12F1BXXB24E LED Indicator is a versatile and reliable component designed to meet your illumination needs. With a mounting hole diameter of 12mm, it can easily fit into various applications. The flush bezel style gives it a sleek and seamless appearance. The solder lug fastons terminals ensure a secure and stable connection. Its black bezel finish adds a touch of elegance to any device. The fixed blue light illumination provides a clear and vibrant display. Operating at a voltage of 24 VDC, it offers efficient performance. With an IP67 sealing, it is resistant to dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 12 mm
- Led Colour: Blue
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clear
- super bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
