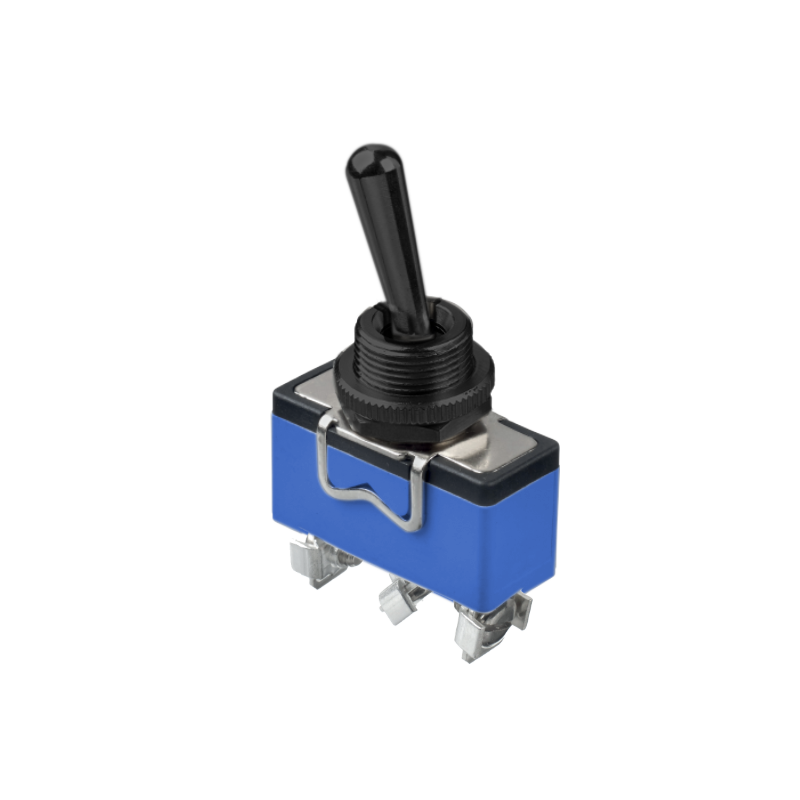

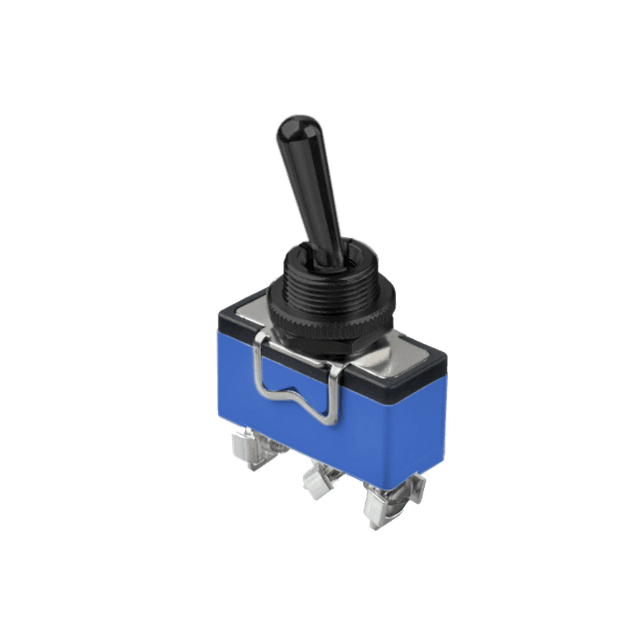

635HG
The 635HG Panel Switch, also known as Part Number 635HG, is a versatile toggle switch that offers a seamless user experience. With its single pole configuration, it provides reliable electrical functions such as momentary on/off capabilities. Featuring metal lever screw terminals, it ensures secure and efficient connections for your electrical applications. Whether you need to control lights, motors, or other devices, the 635HG Panel Switch is the perfect choice.
Key Features
- Number Of Poles: Single Pole
- Electrical Functions: MOM ON
- Options: Black Finish
- Terminals: Metal Lever Screw Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
