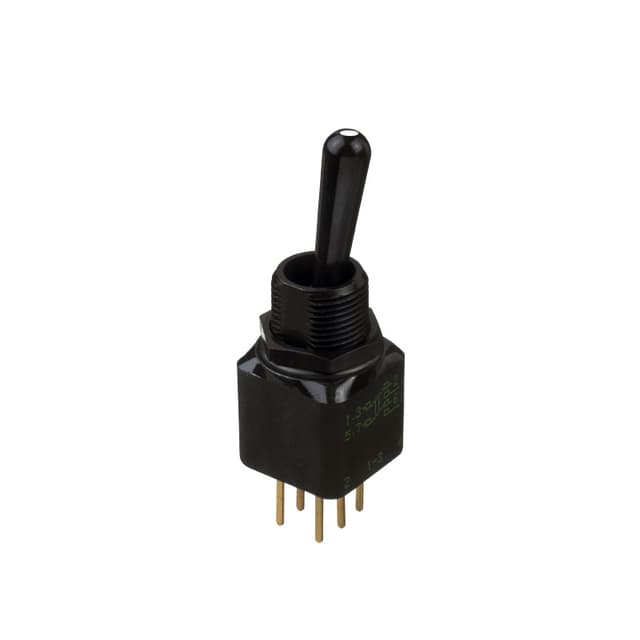

12248-038X778
The 12248-038X778 Panel Switch is the perfect solution for your electrical needs. With its double pole configuration, you can rely on its stability and efficiency. It offers various electrical functions, including ON, OFF, and MOM (momentary). The switch is equipped with a standard lever for easy operation. Upgrade your electrical system with the reliable and versatile 12248-038X778 Panel Switch.
Key Features
- Approvals: No Agency Approval Required
- Number Of Poles: Double Pole
- Electrical Functions: ON OFF MOM
- Fluorescent Tip: White Fluorescent Tip-to-Lever
- Levers: Standard
- Terminals And Bushing: Straight PC
Specifications
Distinctive Features:
- CECC approved - conforms to MIL specifications
- Highly reliable contacts
- Pinned lever
- Double shell case for high mechanical strength and highelectrical insulation
- Compact size
General Specifications:
- Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness : 8 mm (.314) max. - 3 mm (.118) min.
- Electrical life :- At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)
Environmental Specifications:
- Shock test : 50g - 11ms (IEC 68-2-27)
- Vibrations : 10-500 Hz - 10g (IEC68-2-6)
- Operating temperature : -40°C to +85°C
- Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
- Salt spray test : 96 hours (IEC 68-2-11)
- Front panel sealing by two O-rings Flatted bush for precise orientation
- Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
- Epoxy sealed terminals
- Splash-proof case
Electrical Specifications:
- Max. current/voltage rating with resistive load : 4A 28VDC
- Minimum load : 10mA 50mV, 10μA 5VDC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1.000 MΩ min. at 500VDC
- Dielectric strength :1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles
- Contact bounce : 2 ms max.
