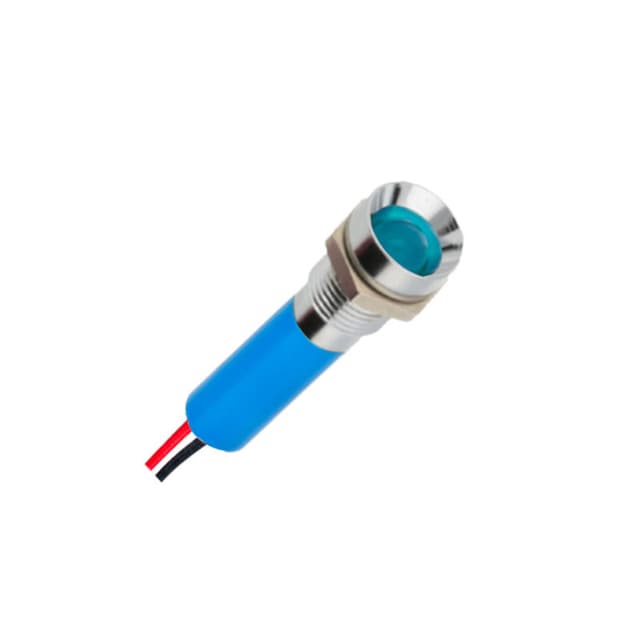

Q8R3CXXB24E
The Q8R3CXXB24E LED Indicator is designed to provide clear and reliable visual indication in various applications. With an 8mm mounting hole and recessed bezel style, it seamlessly integrates into any panel or device. The bright chrome bezel finish adds a sleek and professional touch to the overall appearance. Powered by a 24VDC voltage, it emits a vibrant blue light that is easily distinguishable. The IP67 sealing ensures its durability and protection against dust and water ingress. With its simple yet effective design, this LED Indicator is the perfect choice for any project requiring fixed blue illumination.
Key Features
- Mounting Hole: 8 mm
- LED Color: Blue
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
