Q16F5CXXHG110E

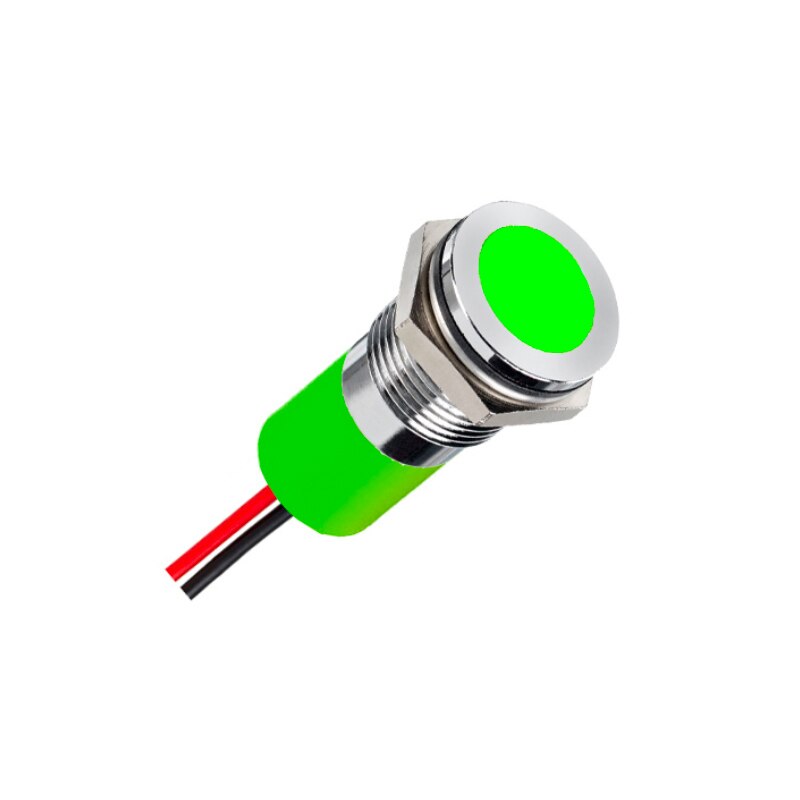

The Q16F5CXXHG110E LED Indicator is a versatile and reliable product that will meet your needs. With a 16mm mounting hole, it can be easily installed in various applications. The flush bezel style adds a sleek and modern touch to any equipment. The rear epoxy wires ensure secure and durable connections. The bright chrome bezel finish gives it a polished and professional look. With fixed light illumination, it provides a steady and clear indication. The hyper bright green LED color is highly visible and eye-catching. Operating at 110 VAC, it is compatible with most power sources. Its IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 16 mm
- LED Color: Hyper Bright Green
- Voltage: 110V AC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C *
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
