Q14P7BXXG24E

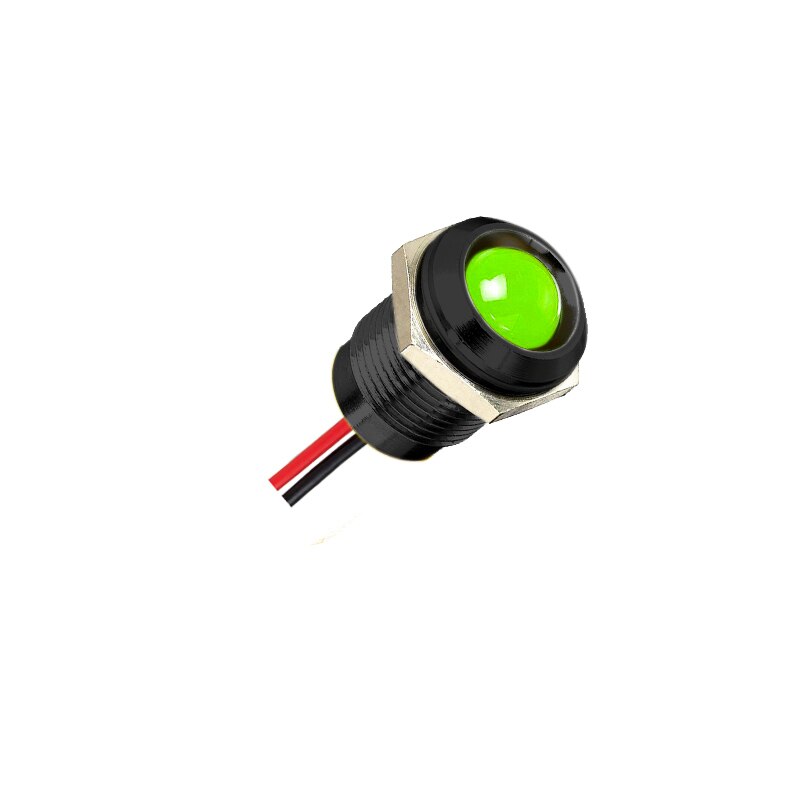

Introducing the Q14P7BXXG24E LED Indicator, a versatile and reliable solution for all your indicator needs. With a 14mm mounting hole, installation is a breeze. The prominent bezel style adds a touch of sophistication to any application. Equipped with short body wires, connecting the terminals is quick and hassle-free. The sleek black bezel finish complements any design aesthetic. Enjoy the fixed green light illumination, providing clear visibility in any environment. Operating at a voltage of 24 VDC, this indicator is both efficient and powerful. With an IP67 sealing, rest assured that this indicator is built to withstand even the harshest conditions.
Key Features
- Mounting Hole: 14mm
- LED Color: Green
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Short Body Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clear
- super bright LEDs
- Prominent and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
