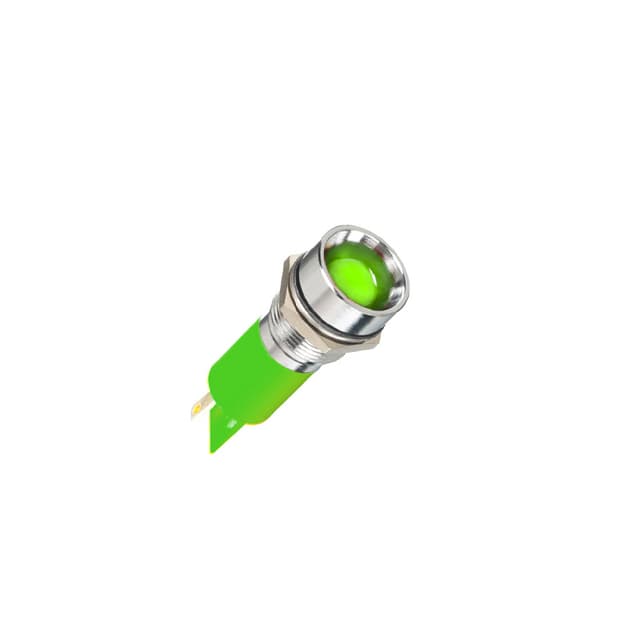

Q12R1CXXG28E
The Q12R1CXXG28E LED Indicator is a versatile and high-quality product that is perfect for a range of applications. With a mounting hole diameter of 12 mm, it can be easily installed in various settings. The recessed bezel style adds a sleek and modern touch to any design. The solder lug fastons terminals ensure a secure and reliable connection. The bright chrome bezel finish adds a touch of elegance. With fixed green illumination, it provides clear and consistent lighting. Operating at a voltage of 28 VDC, it is energy-efficient and durable. Additionally, the IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
![Q12R1CXXG28E](/medias/Q12-recessed-chrome-solder-lug-green.jpg?context=bWFzdGVyfGNsb3VkaW1hZ2VzfDM4NjY0fGltYWdlL2pwZWd8aDYzL2gwOS85MjQ3ODY1ODMxNDU0L1ExMl9yZWNlc3NlZF9jaHJvbWVfc29sZGVyX2x1Z19ncmVlbi5qcGd8MTE3M2VkYmY5OTA3OWEzYjQzZjg5YmE1M2NlODNjOTRhNzY3NGQwOWJhNmJjNzdmNzFhY2NlY2RjNzY2YWIyMw)
Wesentliche Merkmale
- Serie: Q
- Stromspannung: 28 VDC
- LED-Farbe: Grün
- Terminals: Lötösen/ Fastons (2,8 x 0,8)
- Gehäusetyp: Einbau
- Gehäusematerial: Glanzchrom
- Befestigungsloch: Ø12mm
- Art der Beleuchtung: Dauerlicht
- Dichtung: IP67
Spezifikationen
Unterscheidungsmerkmale:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
Allgemeine Spezifikation:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Umgebungsbedingungen:
- Panel sealed up to IP67 according to EN 60529
Elektronische Spezifikationen:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
