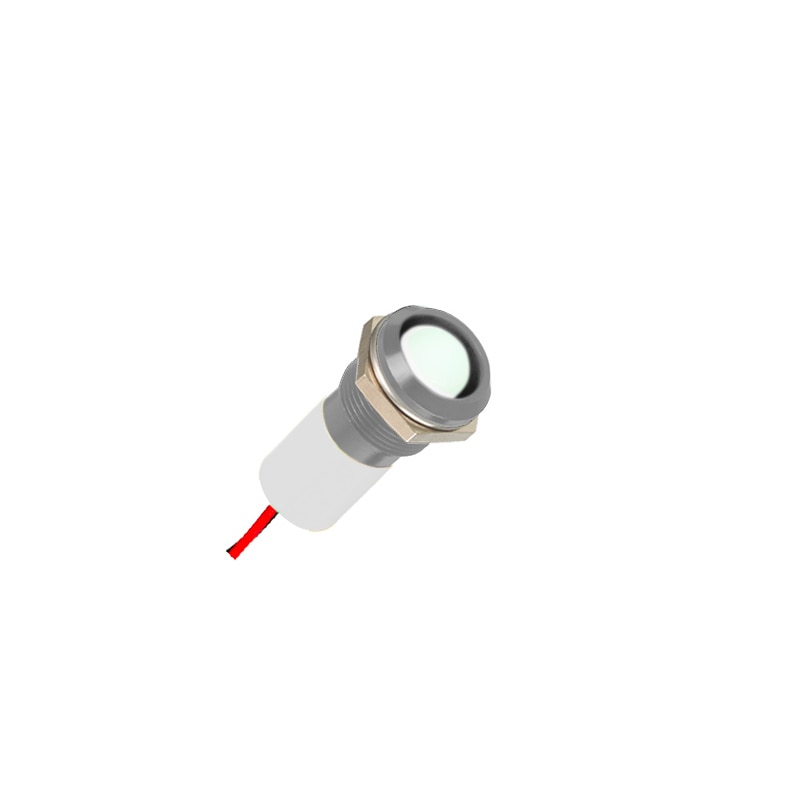

Q12P3BXXSW28E
The Q12P3BXXSW28E LED Indicator is the perfect solution for all your illumination needs. With a 12 mm Mounting Hole, it can easily be installed in various applications. The Prominent Bezel Style adds a touch of elegance to any design. Its sleek Black Bezel Finish ensures a seamless integration into your product. The Fixed Light illumination provides a steady and reliable glow. The Super Bright White LED Color delivers vibrant and crisp lighting. Operating at 28 VDC, it guarantees optimal performance. And with an IP67 Sealing, it is resistant to dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 12 mm
- LED Color: Super Bright White
- Voltage: 28V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
