12246AD2GK-1V

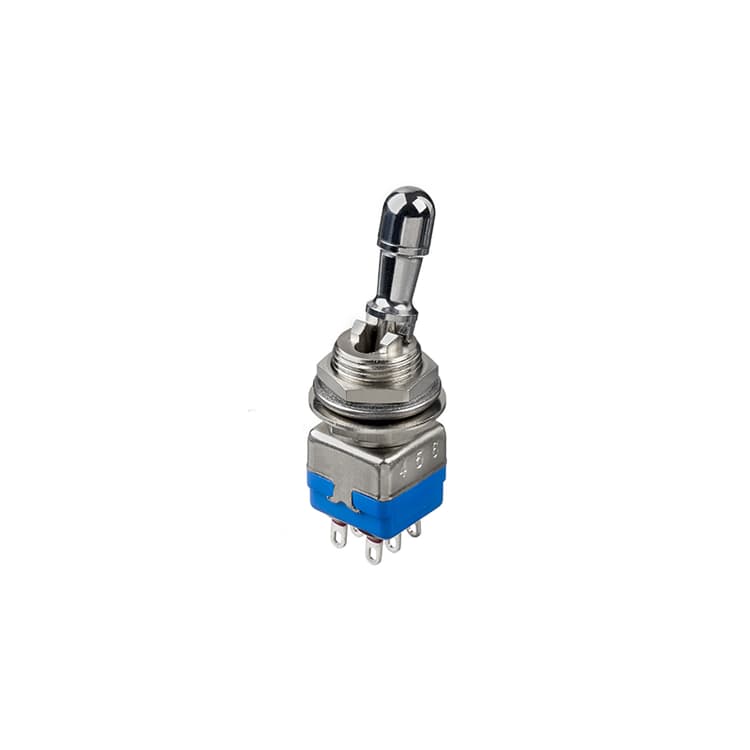

The 12246AD2GK-1V Panel Switch is a versatile and reliable device that belongs to the Toggles category. With its double pole configuration, it ensures optimal performance and enhanced safety. The switch offers various electrical functions, allowing users to easily control and manage different circuits. Equipped with a single lever, it provides a comfortable and ergonomic grip. The lever is designed with a locked position, ensuring stability and preventing accidental toggling. Whether used in industrial or residential applications, this Panel Switch guarantees efficient and hassle-free operation.
Key Features
- Number Of Poles: Double Pole
- Electrical Functions: ON ON
- Contact Materials: Silver (Gold-Plated)
- Finish: Black Finish On Bushing Actuator and Hardware
- Fluorescent Tip: None
- Levers: 1 Locked Position
- Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
- Terminals And Bushing: Straight PC
- Special Options: No Special Requirement
Specifications
Distinctive Features:
- CECC approved - conforms to MIL specifications
- Robust switches for high specification environments
- Toggle action on 2-position models for a smoothmechanical operation
- Several front panel sealing options
- Several locking lever options
General Specifications:
- Torque :1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
- Standard panel thickness : 4,5 mm (.177) max.
Environmental Specifications:
- Operating temperature : -40°C to +85°C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (A-AD2-X780) : 4A 30VDC- gold contacts (D) : 100mA 30VDC
- Minimum load : AD2-X780-D contacts : 10mA 50mV, 10μA 5V min.
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1.000 MΩ min. at 500VDC
- Dielectric strength :1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame
- Contact bounce : 2 ms max.
