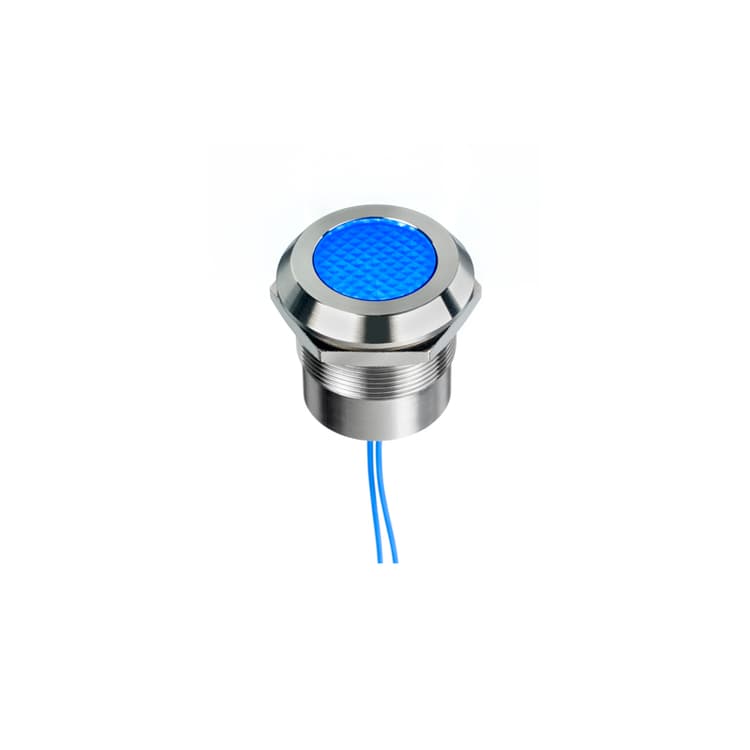

Q25Y5SXXR1AE
The Q25Y5SXXR1AE LED Indicator is a versatile and reliable component designed to meet your visual signaling needs. With a 25mm mounting hole, it can be easily installed in various applications. The chamfer bezel style adds a sleek and modern touch to your design. Its rear epoxy wires ensure secure and convenient connections. The stainless steel bezel finish provides durability and a professional look. Emitting a fixed red light, this indicator offers clear and unmistakable illumination. Operating at a voltage range of 12 to 24 VAC DC, it is compatible with a wide range of power sources. With its sealed construction, it is resistant to moisture and dust, ensuring long-lasting performance.
Key Features
- Mounting Hole: 25mm
- LED Color: Red
- Voltage: 12-24V AC/DC
- Sealing: Sealed
- Terminals: Rear Epoxy Wires
- Bezel Finish: Stainless Steel
- Type Of Illumination: Fixed Light
- Bezel Style: Chamfer
Specifications
Distinctive Features:
- 18.2mm colored Fresnel lens200 mm long wire terminations
- Rear epoxy sealed
General Specifications:
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 9mm
- Reverse Voltage: The indicator has no polarity
- Mounting torque: 75 cNm/0.75 Nm
Environmental Specifications:
- Panel sealed up to IP67 and IP69K
- Temperature Range:-40 °C to +85 °C (–40 °F to +185 °F)
Electrical Specifications:
- 12 to 24 V AC/ DC with over voltage protection at 36V
