Q12P5CXXHR12E

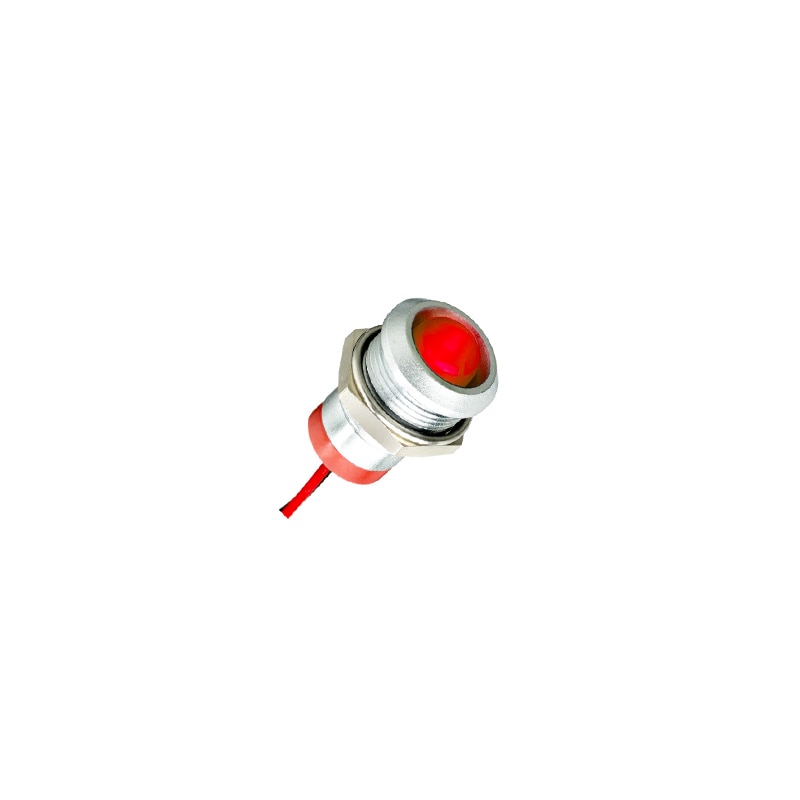

The Q12P5CXXHR12E LED Indicator is designed for easy installation with a mounting hole diameter of 12 mm. Its prominent bezel style adds a sleek touch to any application. The indicator features rear epoxy wires for convenient terminal connections. With a bright chrome bezel finish, it exudes a polished look. The fixed light illumination provides a steady and reliable signal. The hyper bright red LED color ensures clear visibility even in bright conditions. Operating at 12 VDC, it is compatible with various power sources. Additionally, its IP67 sealing protects against dust and water damage, making it suitable for outdoor use.
Key Features
- Voltage: 12 VDC
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø12 mm
- Terminals: Rear epoxy Wires
- Led Color: Hyper Bright Red
- Bezel Style: Prominent
- Series: Q
- Sealing: IP67
- Bezel Finish: Bright Chrome
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
