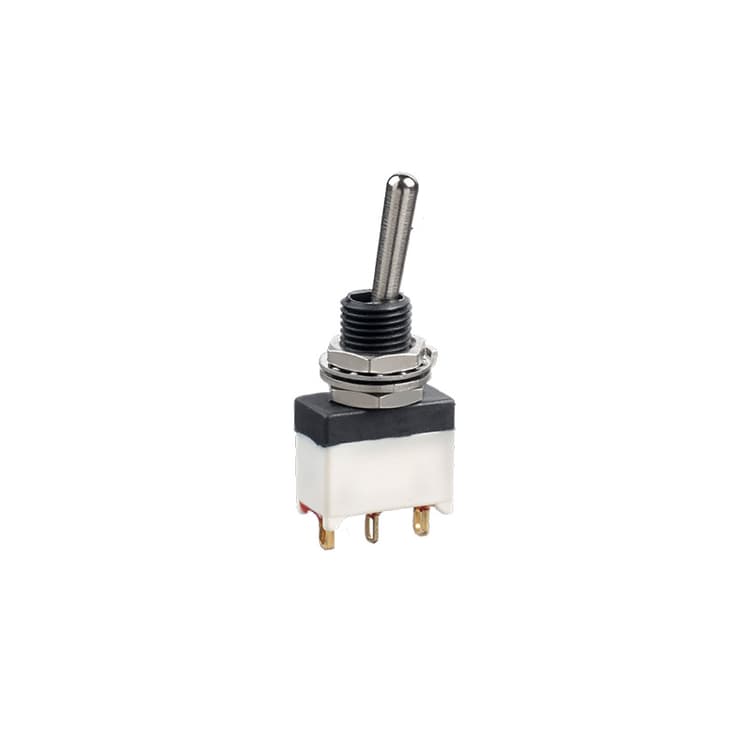

SF39P000000
Introducing the SF39P000000 Panel Switch, a versatile and reliable solution for your electrical needs. With its sleek design and durable construction, this toggle switch is perfect for a wide range of applications. Whether you're controlling lights, fans, or other electrical devices, the SF39P000000 has got you covered. It features a single pole configuration, providing a simple and efficient solution. The ON OFF ON electrical functions allow for easy switching between different modes. With its straight PC terminals, installation is a breeze. Plus, the long levers provide effortless operation. Upgrade your electrical systems with the SF39P000000 Panel Switch today!
Key Features
- Number Of Poles: Single Pole
- Electrical Functions: ON OFF ON
- Contact Materials: Brass (Gold-Plated)
- Levers: Long
- Model: Standard
- Terminals: Straight PC Terminals
Specifications
Distinctive Features:
- Process sealed
- Front and rear sealing
- Optional ESD protection
General Specifications:
- Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max.
- Iron soldering : 300 °C (572 °F) 5 sec. max.
- Max. torque : 0.25 Nm (.184 Ft.lb)
- Max. panel thickness : 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut
Environmental Specifications:
- Operating temperature : -20 °C to +85 °C (-4 °F to +185 °F)
- Storage temperature : -40 °C to +85 °C (-40 °F to +185 °F)
- Moisture : The insulating materials employed and the complete seal permit the switches to withstand a 56 days moisture test (IEC 68-2-3).
- Solderability : The switches are tested at 235 °C ( 455 °F) according to IEC 68-2-20 after accelerated aging.
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (A) : 4 A 30 VDC- gold plated brass contacts (CD) : 0.4 VA 20 VAC or DC- gold plated silver contacts (AD) : 4 A 30 VDC (300 mA 30 VDC for gold plating)
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1,000 MΩ min.
- Dielectric strength : 1,000 Vrms 50 Hz min.
