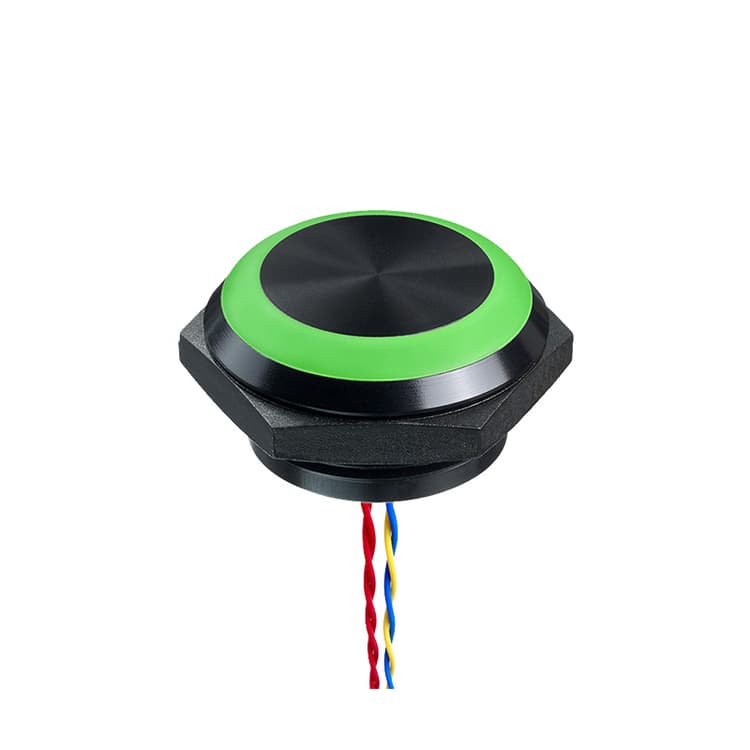

PBAM4AFB002E0Y
Introducing the PBAM4AFB002E0Y, a cutting-edge Panel Switch designed to revolutionize your electrical functions. With its sleek design and innovative features, this switch is perfect for various applications. Say goodbye to pulse-related issues as this switch is pulse-free, ensuring a seamless and uninterrupted electrical performance. Connect with ease using the flying leads terminals, making installation a breeze. Upgrade your electrical system with the PBAM4AFB002E0Y Panel Switch today!
Key Features
- Led Colour: Yellow
- Electrical Functions: No Pulse
- Bushing Operator: Operator Height: 5.5mm (0.216in) Illuminated Prominent Translucent Ring
- Colors Materials: Stainless Steel 316L
- LED Voltage: 24VDC
- Ratings: 1A 24V AC/DC
- Terminals: Flying Leads
Specifications
Distinctive Features:
- Bushing diameter 16 (.630), 19 (.748), 22 (.866) or 30 mm (1.181)
- Sealed to IP68 and IP69K (switches mounted on panel)
- Easy to clean metal surface
- Very long life expectancy
- Ring illumination: flush or prominent ring
General Specifications:
- Operating force : 6 to 12 N
- Torque : 1.5 Nm min. - 10 Nm max
Environmental Specifications:
- Sealing : IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel)
- Operating temperature : -40 °C to +75 °C (-40 °F to +167 °F)
Electrical Specifications:
- Max. current/voltage rating with resistive load : 1 A 24 VAC/DC
- Switch resistance ON : 10 Ω max.
- Switch resistance OFF : 5 MΩ min.
- Life expectancy : 50 million cycles
- LED consumption : 20 mA
