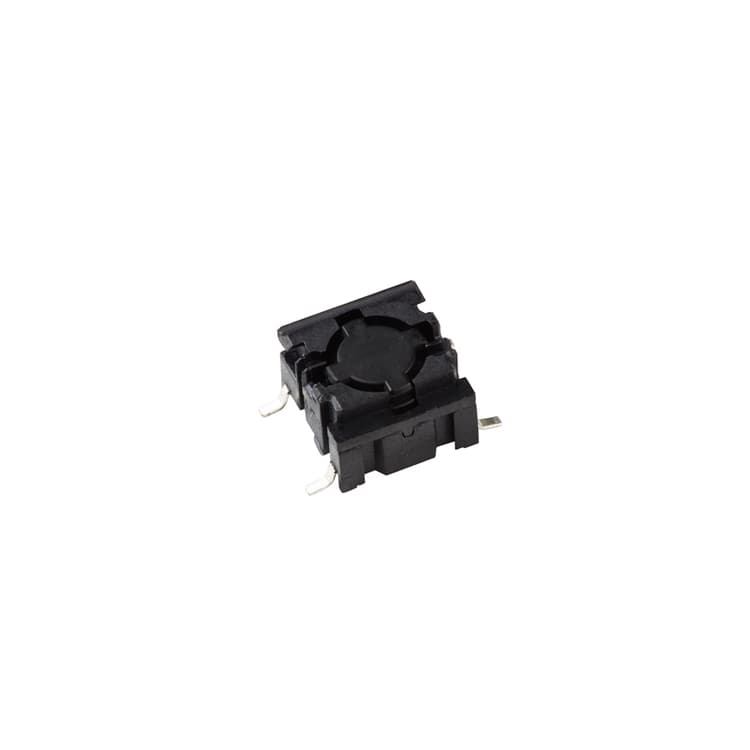

5GTH92029
The 5GTH92029 PCB Switch is designed for easy mounting, making it a convenient choice for various applications. With an actuation force of 20N, this switch provides a satisfying tactile feedback. The high intensity green LED adds a visually appealing element to the switch, making it easily visible in any environment. .
Key Features
- Actuation Force: 20 N
- Mounting: Through-hole
- LED: High Intensity Green
Specifications
Distinctive Features:
- Large range of accessories
- Momentary switches with NO or NC/NO function
- Sealed to IP67
- Single or bi-color illumination option
- Illumination with integrated chip-LEDs
General Specifications:
- Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole
- 50mA/24VDC
- Single pole/momentary
- 10,000,000 operations lifetime (NO function)
- Temperature range: Switch: -40/+160°C LED: -40/+85°C
- IP 67 sealing
- Actuation force: 2.0N, 3.5N, 6.5N
- NO or NC/NO
Environmental Specifications:
- Working temperature: -40/+160°C
- Storage temperature: -40/+160°C
- 5G with LED (working & storage temp): Min -30°C Max +85°C
- Soldering (TH): IEC 68-2-20 8
- Soldering (SMD): JEDEC J-STD-020C
- ENVIRONMETAL ENDURANCE IEC 68-2-3
- Temperature: +40°C
- Humidity: 93% RH
- Duration: 56 Days
- TEMPERATURE CYCLING IEC 68-2-14
- Temperature limit: -55/+85°C
- Number of cycles: 200
- Exposure time at each temperature: 10 min
- Recovery time before measurements: 16 hrs
- Sealing IEC 529: IP-67
Electrical Specifications:
- Contact resistance: <30m Ω - typ. 10m Ω
- Insulation resistance: >10M Ω
- Recommended load: Silver- 0.5μ-50mA 24VDC Gold - 0.5μ-50mA 24VDC
- Contact bounce: <2mS - typically 0.5mS
