QRM84ANXXSR24E

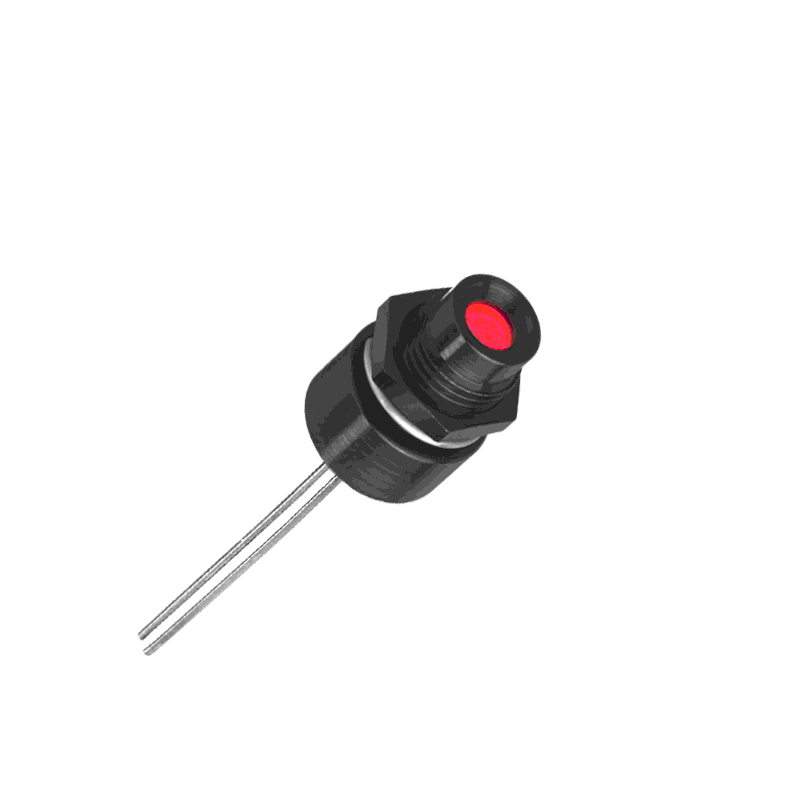

The QRM84ANXXSR24E is an LED indicator with an 8 mm mounting hole for easy installation. It features rear epoxy pins for secure terminal connections. The bezel has an anodized black finish for a sleek look. This indicator provides fixed light illumination and emits a super bright red LED color. With a voltage of 24 VDC, it delivers reliable performance. Its IP67 sealing ensures protection against dust and water, making it suitable for various applications.
Key Features
- Mounting Hole: 8 mm
- Led Colour: Super Bright Red
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Rear Epoxy Pins
- Bezel Finish: Anodised Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 3 mm flush diffused LED, standard, hyper bright or clear water
- Bi-color LED options
- 200 mm wire or pin terminations
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 3.5mm
- Torque: 60cNm
Environmental Specifications:
- Operating Temperature Range: –40°C to +85°C
- Storage Temperature Range: –55°C to +100°C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
