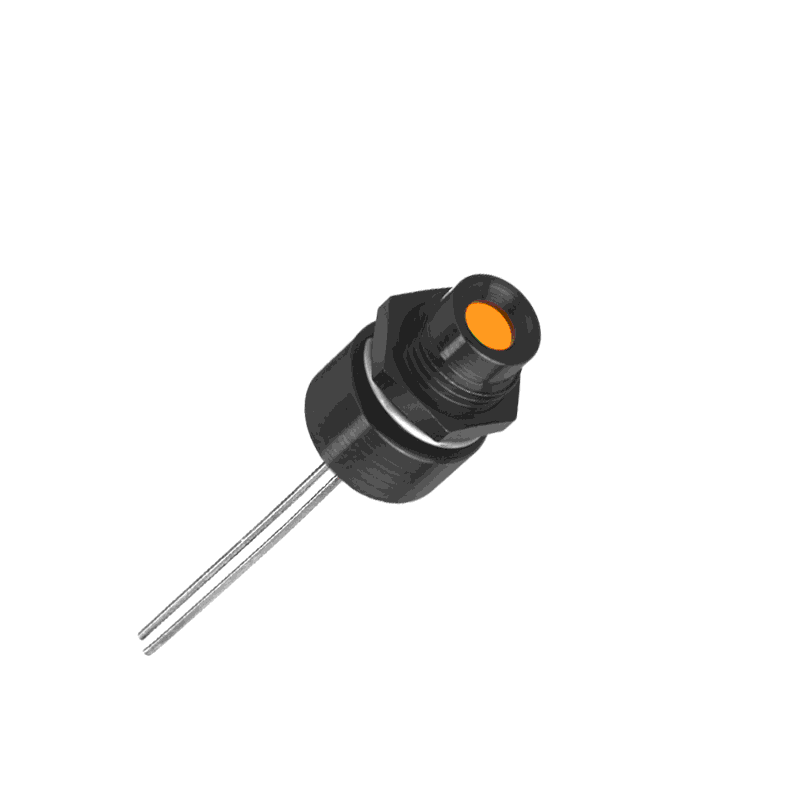

QRM84ANXXSO24E
The QRM84ANXXSO24E LED Indicator is a versatile and reliable product designed to meet your illumination needs. With its 8mm Mounting Hole, it can easily be installed in various applications. The Terminals provide a secure connection, ensuring stability and durability. The Anodized Black Bezel Finish adds a sleek and professional look to any device. With Fixed Light illumination, you can count on a consistent and dependable glow. The Super Bright Orange LED color provides clear visibility in any environment. Operating at 24 VDC, this LED Indicator offers efficient performance. Additionally, its IP67 Standard sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 8 mm
- Led Colour: Super Bright Orange
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Pins
- Bezel Finish: Anodised Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 3 mm flush diffused LED, standard, hyper bright or clear water
- Bi-color LED options
- 200 mm wire or pin terminations
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 3.5mm
- Torque: 60cNm
Environmental Specifications:
- Operating Temperature Range: –40°C to +85°C
- Storage Temperature Range: –55°C to +100°C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
