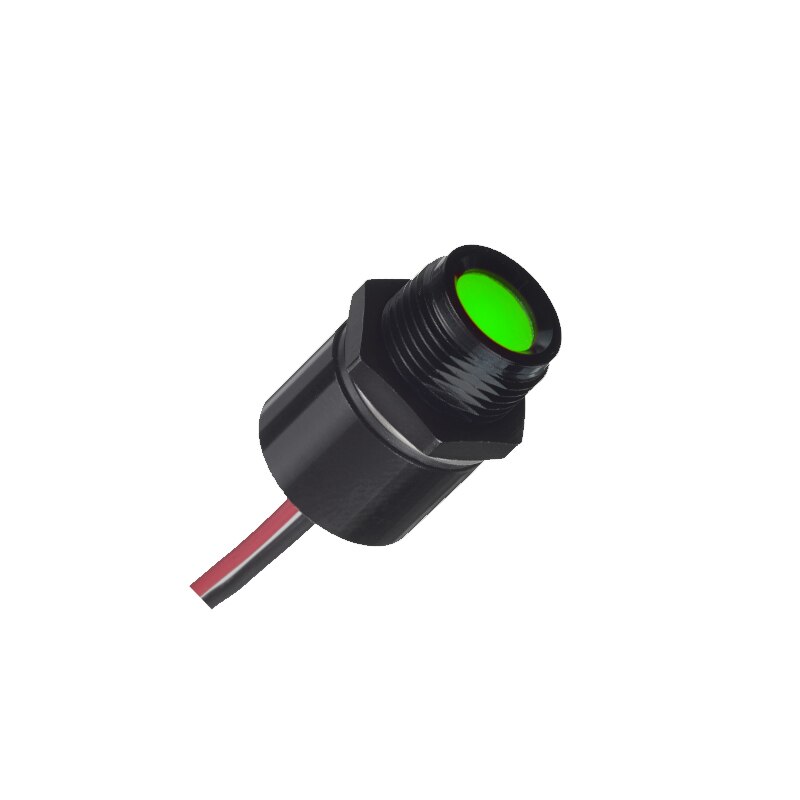

QRM145BXXHG24E
The QRM145BXXHG24E LED Indicator is a versatile and reliable solution for various applications. With a mounting hole diameter of 14mm, it can be easily installed in any compatible panel or device. The terminals are designed for convenient wiring, ensuring a hassle-free installation process. The black bezel finish adds a sleek and modern touch to any equipment it is integrated into. The fixed light illumination provides a constant and steady glow, allowing for clear visibility in any environment. The hyper bright green LED color delivers vibrant and eye-catching visuals. Operating at a voltage of 24 VDC, this LED indicator is energy-efficient and cost-effective. Additionally, it is sealed to the IP67 standard, providing protection against dust and water ingress.
Key Features
- Mounting Hole: 14 mm
- Led Colour: Hyper Bright Green
- Voltage: 24V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- IP67 Sealed
- Bi-Color & Tri-Color Options
- 2 to 28 VDC
- 200 mm wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 10 mm
- Torque: 75 cNm
Environmental Specifications:
- Operating Temperature Range: –40 °C to +85 °C
- Storage Temperature Range: –55 °C to +100 °C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
